SERIES SFI 300°F

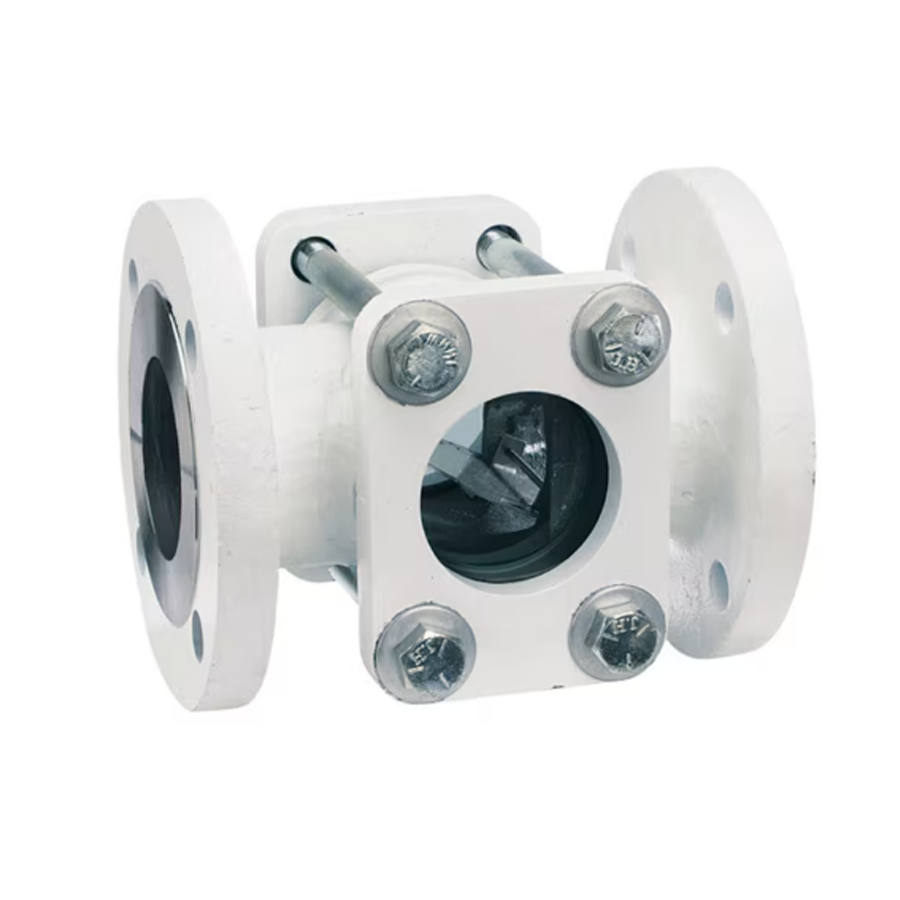

SERIES-SFI 300°F SIGHT FLOW INDICATORS

Series 300°F Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 300°F Series offer ANSI flange process connections, double viewing windows, and bodies of carbon steel or 316 SS. The 350F type has a double window with no moving indicator and the 360F type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

Product Applications

Hydraulic tanks
Pressure vessels
Coolant tanks
Hydraulic lines
Oil reservoirs

Technical Sheets

Instruction Manual

Catalog Page

Specifications

SERIES-SFI 300°F SIGHT FLOW INDICATORS

Series: SFI-300FMaximum Operating
Temperature: (200^{circ }F) ((93^{circ }C))
Maximum Pressure: (150) psig ((10.34) bar)
Process Connections: ANSI Flange Wetted
Materials: Body: Carbon steel or (316)
SS Window: Tempered glass
Gasket: Buna-N, fluoroelastomer, or PTFE Indicator (360F type): (316) SS flapper

Key Features:
Dual viewing windows for visibility
Removable windows for easy servicing
Available Models: 350F: Double window, no moving indicator360F: Double window with a flapper indicator
