WEISS BIMETAL

Weiss offers a complete line of Commercial Bimetal Thermometers in 2″, 3″ and 5″ dial sizes. All versions are hermetically sealed and silicone dampened for optimum performance in most industrial applications. A recalibration feature is standard on the Vari-angle types. Other 3″ and 5″ dial forms are available with or without a reset feature for a wider customer choice and savings.

CASE: The entire case assembly is of Type 304 Stainless Steel. To insure a moisture proof unit, the heavy glass face is securely gasketed with the case and bezel assembly, hermetically sealed.

STEM ASSEMBLY: The stem and fixed thread connection is fabricated of stain-less steel. All welded construction insures complete corrosion resistance. Model BM, RBM and VBM stem diameter is 1/4″ and for 2″ dials the fixed thread is 1/4″ NPT, 3″ and 5″ dials are 1/2″ NPT.

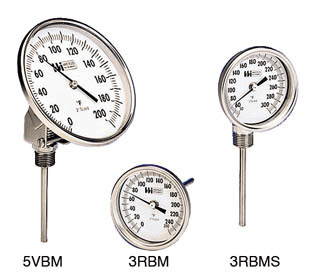

STANDARD MODEL AND SIZES

Dial Sizes: Available in 2″, 3″, and 5″ diameters.

Mounting Styles:

• BM/3BM/5BM: Back-connected (straight).
• RBM: Right-angle (bottom) connected.
• VBM: Vari-angle® design, allowing the dial to be adjusted for the best viewing angle.
• Connections: Typically 1/4″ NPT for 2″ dials and 1/2″ NPT for 3″ and 5″ dials.

Common Ranges

Standard dual-scale (Fahrenheit & Celsius) ranges include:

• -40 to 160°F / -40 to 70°C
• 0 to 250°F / -20 to 120°C
• 50 to 550°F / 10 to 260°C

High-temp models are available up to 1000°F for intermittent service.
