XWA11V-WALK-IN ALARM & LIGHT

Categories: ,
WEISS WALK-IN ALARM & LIGHT MANAGER

WEISS WALK-IN ALARM & LIGHT MANAGER

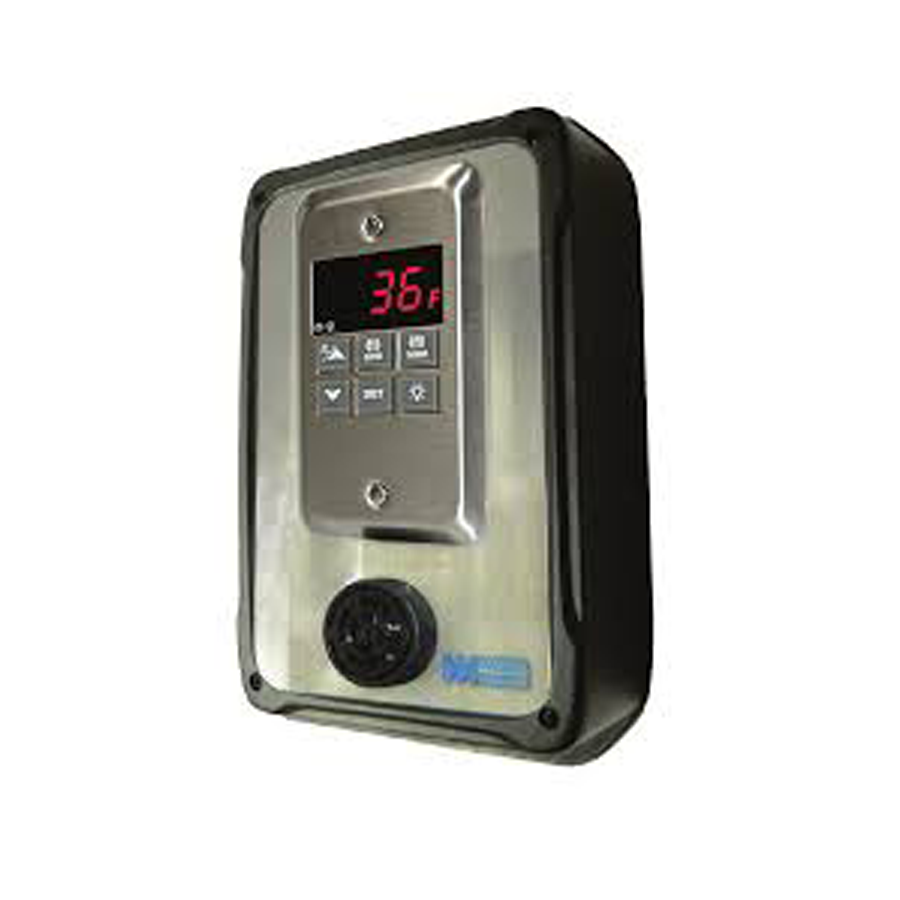

The Weiss XWA11V-KIT is a comprehensive, microprocessor-based control system designed to manage temperature monitoring, light control, and door alarms for commercial walk-in coolers and freezers.

A pre-configured kit for walk-in refrigeration that combines a digital temperature display, a high-load light relay, and a door-open alarm system with a 9V battery backup to ensure operation during power failures.

WEISS XWA11V-WALK-IN ALARM & LIGHT MANAGER

The XWA11V-KIT is an all-in-one solution for HACCP compliance and energy management in food storage. It features a bright LED display for real-time temperature monitoring and manages internal lighting based on door status to prevent energy waste. The kit includes a door switch and a temperature probe, allowing for immediate installation. In the event of a power outage, the integrated battery backup maintains the display and alarm functions for up to 36 hours. It also includes an auxiliary relay that can be used to trigger external dialers or sirens during high-temperature events.



Technical Sheets

Instruction Manual

Catalog Page

Specifications

WEISS XWA11V-WALK-IN ALARM & LIGHT MANAGER

  • Measurement Range: -58°F to 230°F (-50°C to 110°C).
  • Accuracy: ±1°F (±0.5°C).
  • Power Supply: 120 VAC (standard) with an included 9V battery backup.
  • Relay Outputs:
    • Light Relay: 15A (manage lighting up to 1 HP).
    • Alarm Relay: 8A (SPDT for external alerts)
  • Inputs: (1) NTC Temperature Probe and (2) Digital Inputs (Door Switch & Configurable Auxiliary).
  • Enclosure: NEMA 4X (IP65) rated front panel, resistant to water wash-downs.
  • Alarm Features: High/Low temperature alerts, door-open delay alerts, and power failure notification.
