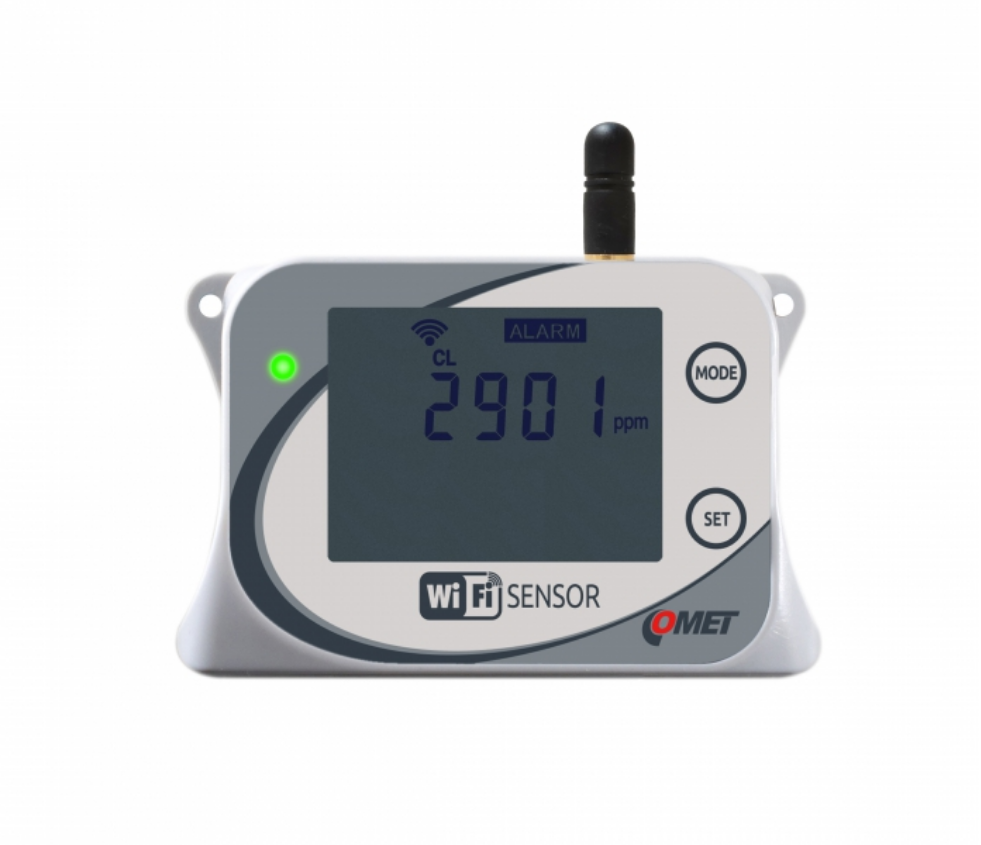

Comet W5714 WiFi \(CO_{2}\) Sensor | Wireless Air Quality Monitor

COMET W5714 WiFi  CO2cap C cap O sub 2 𝐶𝑂2  SENSOR | WIRELESS AIR QUALITY MONITOR

The Comet W5714 is an advanced WiFi-connected \(CO_{2}\) sensor designed for wireless monitoring of indoor air quality in professional and industrial environments. A wireless WiFi \(CO_{2}\) transmitter with an integrated sensor, cloud connectivity, and multi-channel alarm notifications.

Communication with the sensor is done via a wireless WiFi network. The device allows sending measured values ​​to the online COMET Cloud (with the shortest interval of 5 minutes) or into COMET Database. The values ​​can be displayed on integrated web pages and provided to third party systems using the Modbus TCP, SNMP, JSON and XML. The measured values ​​are displayed on the LCD display.

The device continuously evaluates the alarm limits of the measured values ​​and in case of exceeding them, it can send an e-mail or inform by means of acoustic or optical signaling. Two alarm limits are supported for each measurement channel.





COMET W5714 WiFi  CO2cap C cap O sub 2 𝐶𝑂2  SENSOR | WIRELESS AIR QUALITY MONITOR

The W5714 utilizes a maintenance-free NDIR sensor to measure carbon dioxide levels up to 5,000 ppm. It transmits data wirelessly via existing WiFi infrastructure to the COMET Cloud or third-party systems using open protocols like Modbus TCP and SNMP. The device features a large backlit LCD and a 3-color LED indicator (Green, Yellow, Red) for immediate local air quality assessment.

PRODUCT USES:

  • Professional air quality monitoring in smart buildings and offices.
  • Industry 4.0 applications for facility management.
  • Optimizing ventilation in schools, hospitals, and public spaces.
  • Remote environmental monitoring without the need for complex wiring.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

COMET W5714 WiFi  CO2cap C cap O sub 2 𝐶𝑂2  SENSOR | WIRELESS AIR QUALITY MONITOR

  • Measurement Range: 0 to 5,000 ppm CO2cap C cap O sub 2 𝐶𝑂2 (Optional extension to 10,000 ppm).
  • Accuracy: ±(50 ppm+3% of reading)plus or minus open paren 50 ppm plus 3 % of reading close paren ±(50 ppm+3% of reading) at 25° .
  • Connectivity: 2.4 GHz WiFi (IEEE 802.11 b/g/n) with WPA3 security support.
  • Protocols: Modbus TCP, SNMP (v1, v2c, v3), HTTP(S), SMTP, JSON, and XML.
  • Alarms: Email notifications, acoustic buzzer, and visual LED indicators.
  • Power: 5.0 to 5.4 VDC via USB-C connector (power adapter included).
  • Enclosure: IP30 protection rated housing.
