VISI- FLOAT®

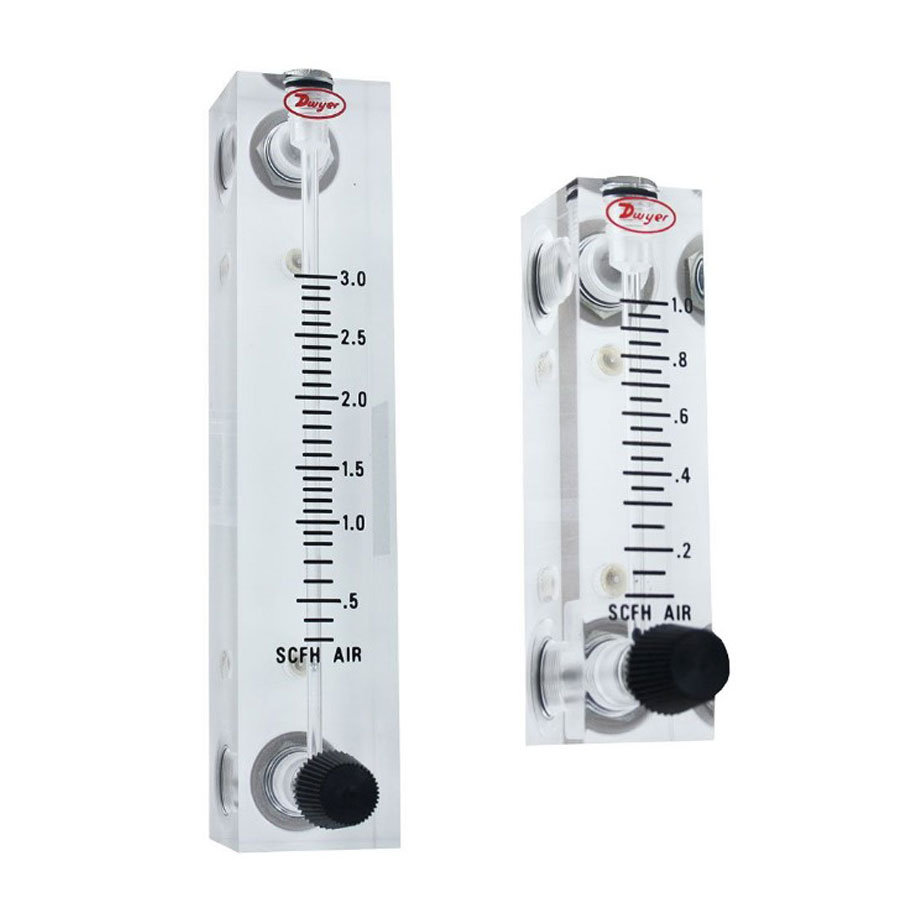

VISI- FLOAT® ACRYLIC FLOWMETERS

Appealing design allows for complete visual inspection with bodies that are cut and precision machined from solid, clear acrylic blocks
Increased reading accuracy with clear visibility of the float on a smooth white background
Eliminates the need for troublesome conversions and increases product operating life with direct reading scales that are hot stamped into the plastic
High repeatability from precision machined tapered bores
Low installation costs with back or end connection options with metal mounting inserts that can be supported directly by system piping

Technical Sheets

Service Compatible gases and liquids.	Wetted Materials Body: Acrylic plastic; O-ring: Buna-N (fluoro elastomer available); Metal parts: Nickel plated brass standard, SS optional; Float: SS, black glass, aluminum, K monel depending on range.
Temperature & Pressure Limits Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).	Accuracy VFA = 5% of FS; VFB = 3% of FS.
Process Connection 1/8″ female NPT. VFB ranges 85 and 86 have 1/4″ NPT back connections or 3/8″ NPT end connections. These ranges not available with brass valves.	Scale Length VFA 2″ typical length; VFB 4″ typical length.
Mounting Orientation Mount in vertical position.	Weight VFA: 4.0 to 4.8 oz (.11 to .14 kg); VFB: 7.2 to 8.8 oz (.20 to .25 kg).
Agency Approvals Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
