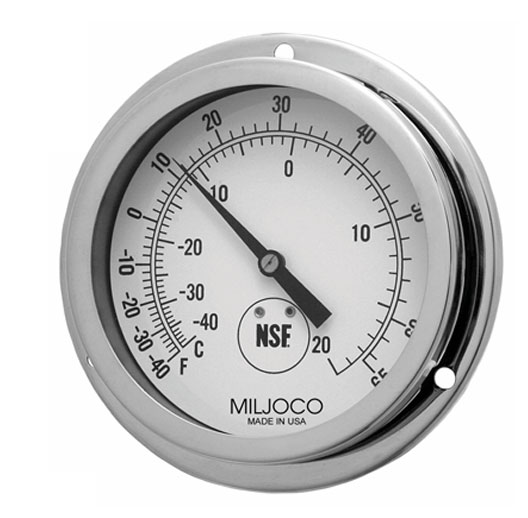

Miljoco Remote Reading Dial Thermometer

MILJOCO VAPOR DIAL THERMOMETERS

Miljoco vapor dial thermometers are manufactured to the highest standards for a wide range of uses and may be fitted into almost any temperature reading application. These instruments are ideal for obtaining readings from remote locations. Being vapor actuated, they are not subject to any ambient temperature variations along the tube system and give excellent readings both above and below ambient. Vapor instruments have progressive graduations and are best read in the upper two-thirds of the range. Many ranges are available between -40°F and 450°F. This series is furnished with a three-hole front flange for panel mounting or a three-hole rear flange for surface mounting.

MILJOCO VAPOR DIAL THERMOMETERS

Miljoco Remote Reading Dial Thermometers are vapor-actuated instruments designed to provide accurate temperature readings from a distance in refrigeration and food service applications.

  • Vapor-Actuated Mechanism: Ensures readings are unaffected by ambient temperature variations along the capillary tube, providing accuracy both above and below ambient conditions.
  • Flexible Installation: Available in flush-mount (using U-clamps or front flanges) or surface-mount configurations for various panel or wall types.
  • Durable Build: Features a 300-series stainless steel or ABS plastic case with a clear, press-in polycarbonate or glass lens.
  • Precision Sensing: Equipped with a tin-plated copper capillary (standard lengths of 60″, 240″, or more) and a nickel-plated copper bulb.
  • User Adjustable: Includes a field-adjustable pointer for recalibration against known standards.



Technical Sheets

Instruction Manual

Catalog Page

Specifications

MILJOCO VAPOR DIAL THERMOMETERS – Technical Specifications

Accuracy: Rated at ±1 scale division.

Temperature Range: Typically ranges from -40°F to 65°F for food storage, with high-range industrial models available up to 450°F.

Ambient Limits: Operates in surrounding temperatures from -40°F to 140°F.
