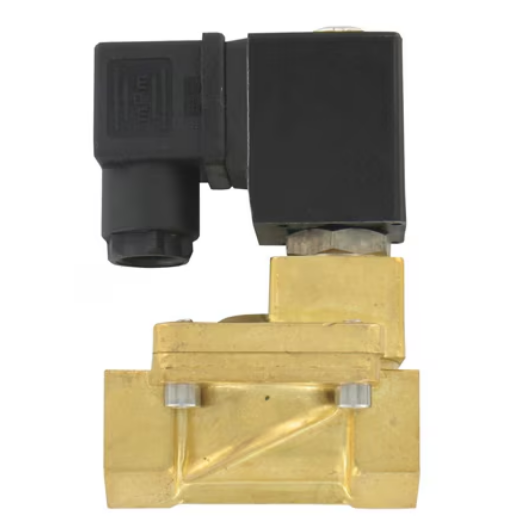

DWYER SBSV-B BRASS SOLENOID VALVE | 2-WWAY NORMALLY CLOSED COMPACT VALVE

The Series SBSV-B features a rugged brass body and a normally closed design that can be oriented in any position for installation flexibility. The solenoid enclosure is rated NEMA 13 (IP54), providing critical protection against dust infiltration and seepage from noncorrosive coolants or oils. These valves utilize an NBR (Buna-N) seal for reliable performance in standard industrial environments.

PRODUCT USES:

Fluid Control: General service management of water, air, and neutral gases.
Automation: Remote operation in liquid dispensing or industrial pneumatic systems.
HVAC Systems: Secondary control of compatible cooling or heating media.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

DWYER WE02 3-PIECE STAINLESS STEEL BALL VALVE | AUTOMATED PROCESS VALVE – KEY SPECIFICATIONS

Operation Type: 2-Way Guided, Normally Closed (NC).
Line Sizes: 1/8″ to 2″ NPT female connections.
Pressure Limit: 246.6 psi (17 bar).
Temperature Limits: Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C).
Wetted Materials: Body: Brass; Spring: 304 Stainless Steel; Seal: NBR.
Power Requirements: Standard 110 VAC; Optional 220 VAC, 24 VDC, or 24 VAC.
Enclosure Rating: NEMA 13 (IP54) with a DIN electrical connection.
