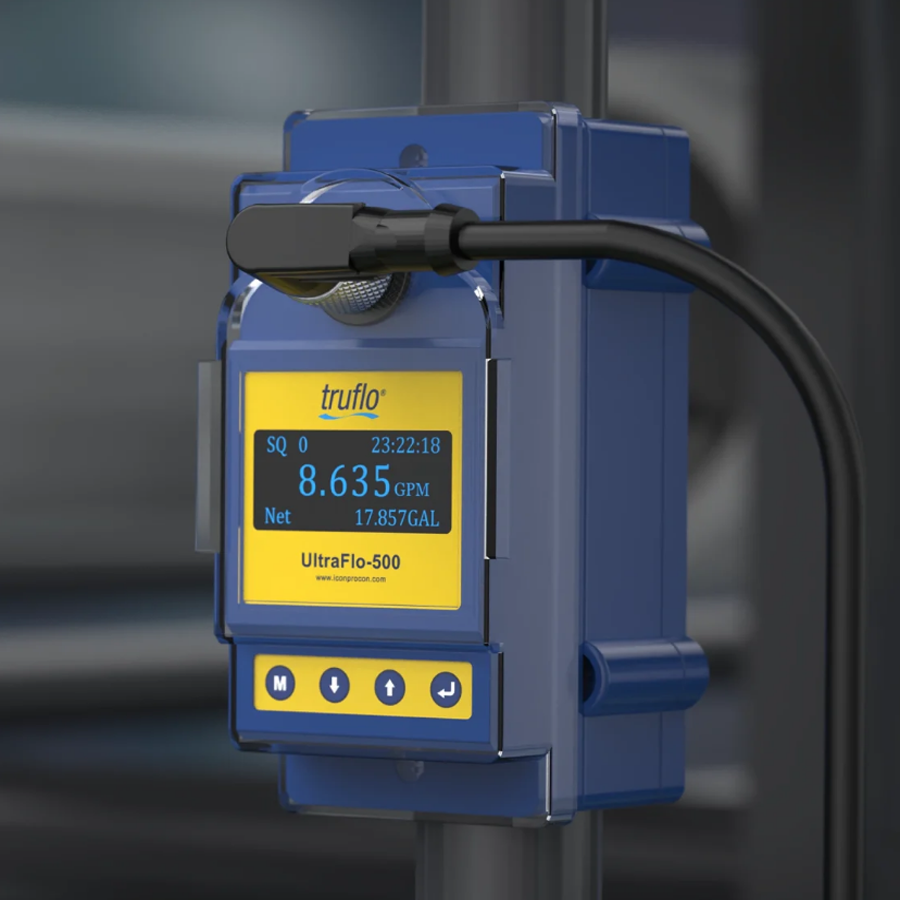

ICON Truflo® UltraFlo 500 (UF500) clamp-on ultrasonic flow meter

UF500 CLAM ON ULTRASONIC FLOW METER SENSOR

The UF500 is a non-invasive, clamp-on ultrasonic flow meter sensor that uses transit-time technology to measure the flow rate of clean liquids inside a pipe. It is manufactured by Icon Process Controls under the Truflo brand. The sensor’s key benefits include its simple installation process, durability, and non-contact operation, which makes it ideal for chemical, water treatment, and HVAC applications.

UF500 CLAM ON ULTRASONIC FLOW METER SENSOR

The Truflo® UF500 series Clamp-On Ultrasonic Flow Meter Sensor redefines simplicity and efficiency in liquid flow measurement. These cutting-edge meters boast a remarkable feature set that eliminates the need for any pipe modification, ensuring a hassle-free installation process. Emphasizing user convenience, these flow meters enable fast setup, remove flow restrictions, and offer unparalleled ease of installation.

Features:

  • Simple to Install – No Cutting of Pipe
  • Large Blue OLED Low Light Display
  • High Accuracy | ± 2.0%
  • Pipe Sizes ½ – 10″
  • No moving parts – No Maintenance
  • Flow Rate + Total | Resettable
  • Flow Velocity Range | 0.3 – 15 ft/s | 0.1 – 5 m/s
  • Works on PVC | PP | PVDF | PE | SS | Copper Pipe

Applications:

  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification

Technical Sheets

Instruction Manual

Catalog Page

Specifications

UF500 CLAM ON ULTRASONIC FLOW METER SENSOR – Key Specifications

Installation: Non-invasive, clamp-on design that can be installed on existing pipes in minutes without cutting or modifying the piping.
Technology: Transit-time ultrasonic.
Construction: Rugged, Teflon® epoxy-coated aluminum housing for lightweight durability and corrosion resistance.
Outputs: Includes a 4–20mA analog output and RS485 Modbus RTU, with an optional pulse output.
Accuracy: (pm 2.0%) of the full scale, with repeatability of (pm 0.8%).
Display: High-contrast OLED screen for real-time flow rate and totalizer readings.
Performance: Flow velocity range: (0.1) to (5) m/s ((0.3) to (15) ft/s).
Response time: Less than 1 second.
Data logging: Records daily, monthly, and yearly flow totals.
Compatibility: Pipe sizes: (1/2^{prime prime }) to (10^{prime prime }) ((DN15DN250)).
Pipe materials: Works with a wide variety of materials, including carbon steel, stainless steel, PVC, copper, and others.
Operating conditions: Temperature:Standard version: (050^{circ }C) ((32122^{circ }F)).High-temperature (HT) version: Up to (150^{circ }C) ((302^{circ }F)).Pressure: (010) bar ((0145) psi).
