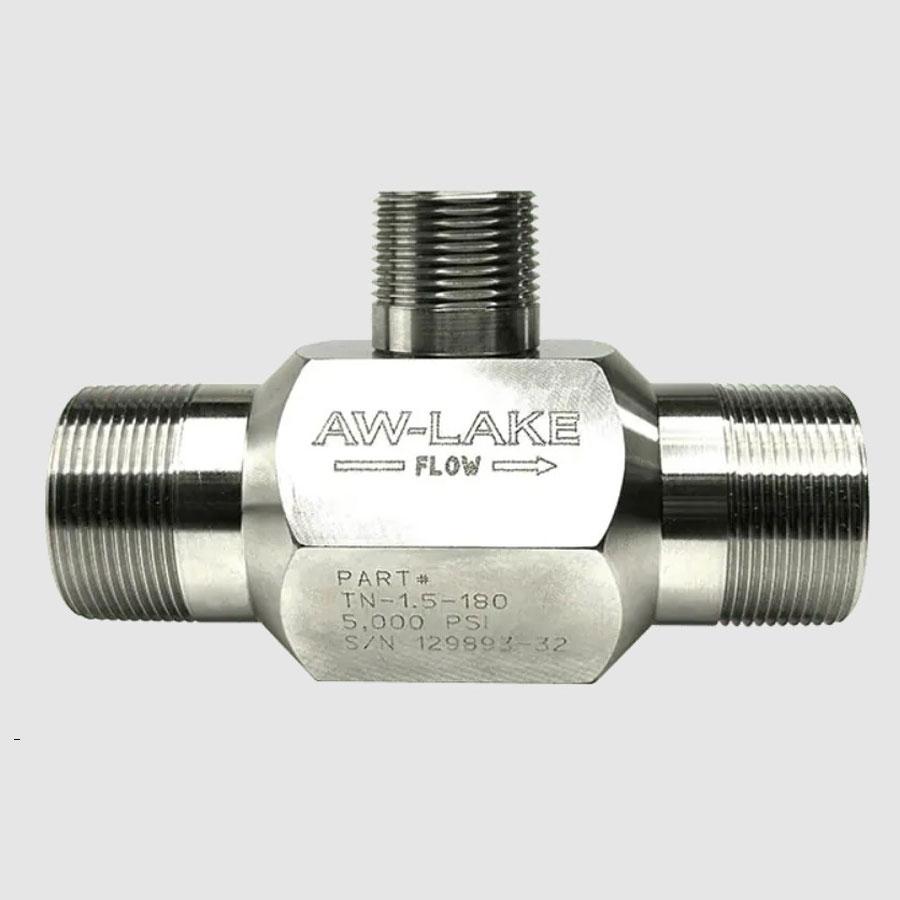

TN TURBINE FLOW METER

The TN Turbine Flow Meter is a cost effective turbine meter that can withstand the demands of the most rigorous flow measurement applications. It is ideal for light viscosity fluids like water, glycol, or solvents and can also provide liquid flow measurement on or off the oilfield.

These meters offer many benefits, including:

Accuracy & Reliability: ±1% of reading
Electronic Integration: This meter can accept a variety of existing electronics, including the EDGE sensor.
Simplified Maintenance: Rotor replacement kit enables the rotor to be replaced in just 2-3 minutes.
Rugged & Cost Effective: All stainless steel construction and tight machining tolerances make for
excellent durability/long life.
Compatible with Current Systems: Easy to install drop-in replacement of other brands of flow meters.

Technical Sheets

Instructional Manual
Catalog Page

Specifications

TN TURBINE FLOW METER – KEY SPECIFICATIONS
3 Flow Ranges: 0.3 – 5,500 GPM (across all meter sizes)
Max. Operating Pressure: Up to 5,000 psi
Measuring Accuracy: ±1.0% over full range with 1cP fluid | ±2.0% for TN-0.5-3 and TN-103
Repeatability: ±0.1% over full range
Operating Temperature Range: -100°F to 250°F (up to 850°F with special coil)
Turndown Ratio: 10:1
Calibration: Water (NIST traceable)
End Connections: NPT and Victaulic® Groove (consult factory for other options)
Materials of Construction: Body: 316 Stainless Steel Rotor: 416 Stainless Steel (CD4MCu) Rotor Supports: 316 Stainless Steel Rotor Shaft: Tungsten Carbide Sleeve Bearings: Tungsten Carbid
