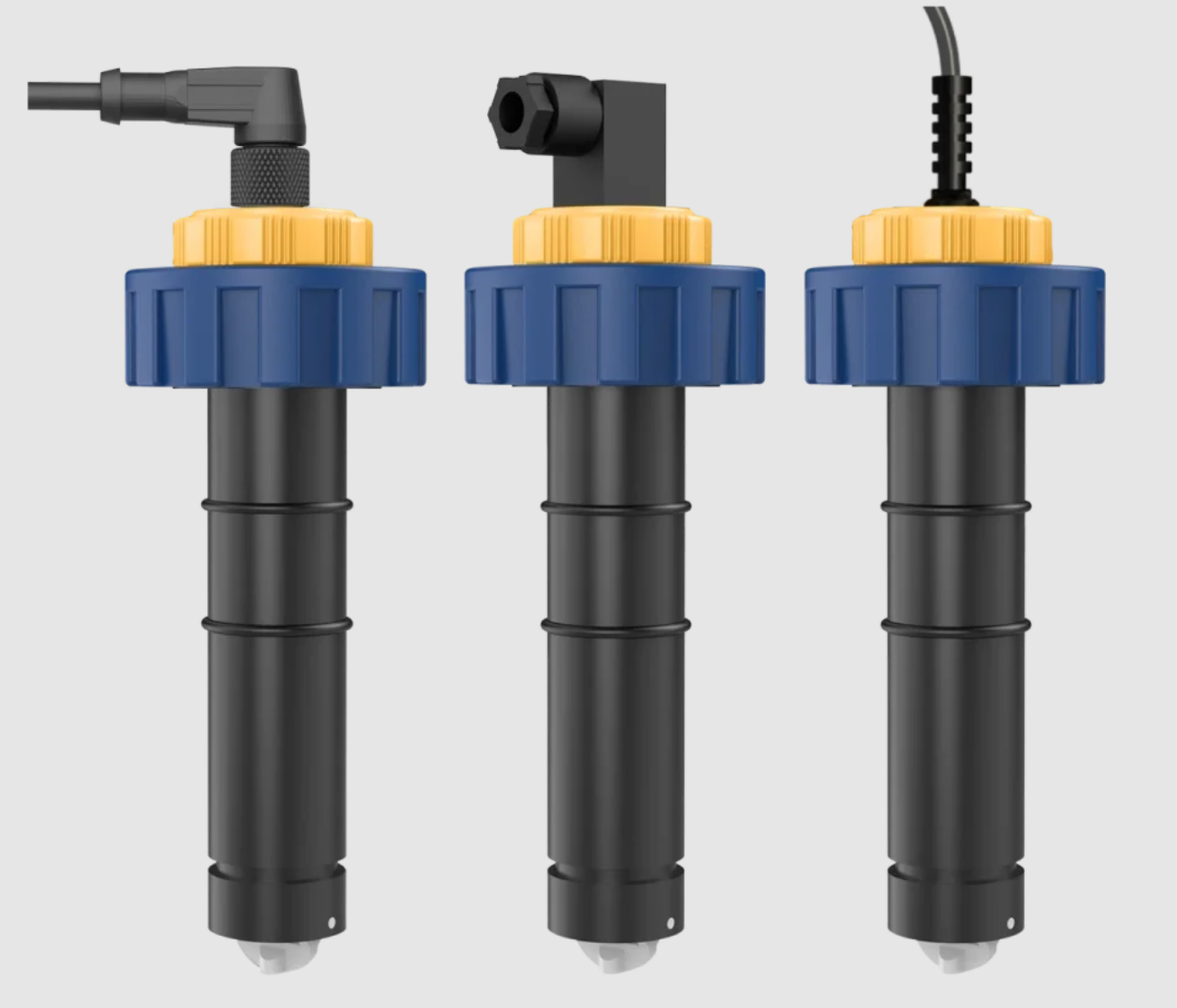

ICON TIW INSERTION PADDLE WHEEL FLOW METER | BLIND OUTPUT & CHEMICAL RESISTANT

The TIW Series features a re-engineered, low-drag fluid-dynamic design that makes it one of the industry’s most accurate chemical flow meters. It is a “blind” unit, meaning it lacks a local display, instead providing a frequency pulse output for integration into remote control systems. Constructed from chemical-resistant materials like PVC, PP, or PVDF, it incorporates a Tefzel® paddle and zirconium ceramic rotor pin for extreme durability and a lifetime warranty on the paddle assembly.

PRODUCT USES:

Chemical processing
Water treatment
HVAC systems
Filter/strainer change-out
Scrubber/gas stacks,
Sodium hypochlorite monitoring

Technical Sheets

Instruction Manual

Catalog Page

Specifications

ICON TIW INSERTION PADDLE WHEEL FLOW METER | BLIND OUTPUT & CHEMICAL RESISTANT – KEY SPECIFICATIONS

Accuracy: ±0.5% of full scale.
Repeatability: ±0.5%.
Flow Velocity Range: 0.3 to 33 ft/s (0.1 to 10 m/s).
Body Materials: PVC, PP, PVDF.
Paddle Material: Tefzel® with Zirconium Ceramic rotor pin/bushings.
Pipe Size Range: ½” to 24″ (using custom fittings).
Pressure Limit: 180 psi at 68°F (12.5 bar at 20°C).
Power Requirements: 5 to 24 V DC.
Output: Frequency Pulse (NPN/PNP).
Environmental Rating: NEMA 4X / IP65.
