DWYER SERIES 160 STAINLESS STEEL PILOT TUBE | ACCURATE AIR VELOCITY MEASUREMENT

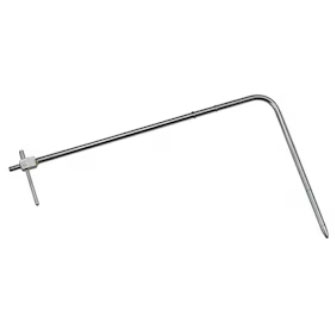

The Series 160 Pitot Tube is constructed from corrosion-resistant 304 stainless steel and features permanently etched insertion depth graduations for long-term service. It utilizes an ASME design that meets AMCA and ASHRAE specifications, ensuring maximum accuracy without the need for manual calibration. Its hemispherical tip design provides low sensitivity to misalignment, allowing for accurate readings even if the tube is misaligned by up to 15 degrees.

PRODUCT USES:

Monitoring and controlling air velocity or flow in HVAC systems.
Performing duct traverses for environmental testing.
Measuring static pressure, vacuum, or differential pressure in air and compatible gas streams.
Industrial air balancing and laboratory-grade flow measurements.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

DWYER SERIES 160 STAINLESS STEEL PILOT TUBE | ACCURATE AIR VELOCITY MEASUREMENT – KEY SPECIFICATIONS

Material: 304 Stainless Steel (wetted).
Temperature Limit: Up to 1500°F (815.5°C) for 5/16″ models.
Maximum Pressure: 100 psi (6.89 bar).
Accuracy: ±2% Full Scale (when properly aligned).
K-Factor/Flow Coefficient: 1.0 (Unity coefficient).
Connections: 1/4″ NPT or barbed fittings depending on the specific model.
Compliances: Meets ASME “Fluid Meters” 6th Ed, ANSI/AMCA 210-99, and ANSI/ASHRAE 51-1999.
