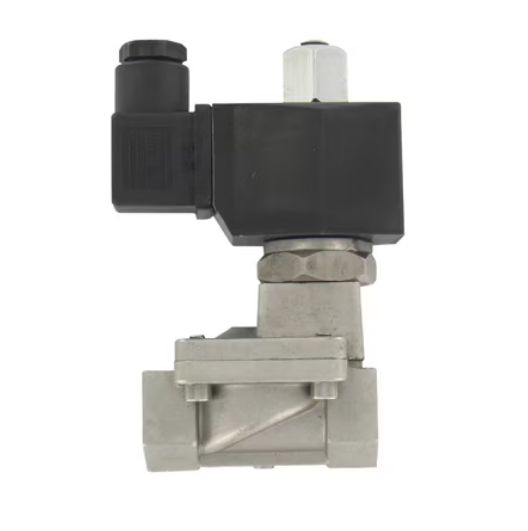

DWYER SSV-SS PIECE STAINLESS STEEL | SOLENOID VALVE DIRECT-ACTING NC VALVE

The Series SSV-SS is a direct-acting solenoid valve, meaning it functions without a minimum pressure differential, making it ideal for low-pressure or gravity-fed applications. Constructed with an investment-cast 316 Stainless Steel (ASTM CF8M) body and high-durability Viton® (FKM) seals, it provides exceptional chemical compatibility and longevity. The valve is designed for high-cycle industrial environments and includes a NEMA 4 (IP65) rated coil as standard, ensuring protection against moisture and dust.

PRODUCT USES:

Corrosive Fluid Control: Managing harsh chemicals, deionized water, and mildly acidic solutions.
Low-Pressure Systems: Reliable shut-off in vacuum systems and gravity-fed tank drainage.
High-Speed Automation: Fast-response switching for manufacturing and chemical dosing.
Process Engineering: Reliable control for air, steam, neutral gases, and oils.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

DWYER SSV-SS PIECE STAINLESS STEEL | SOLENOID VALVE DIRECT-ACTING NC VALVE – KEY SPECIFICATIONS

Operation: 2-Way Guided, Normally Closed (NC).
Line Sizes: 1/8″ to 2″ NPT female.
Pressure Limit: 246.6 psi (17 bar).
Temperature Limits: Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C).
Wetted Materials: Body: 304 Stainless Steel; Spring: 304 SS; Seal: NBR.
Enclosure Rating: NEMA 13 (IP54) with DIN connection.
Power Options: 110 VAC, 220 VAC, 24 VAC, or 24 VDC.
