SERIES SSV-B

Categories: ,

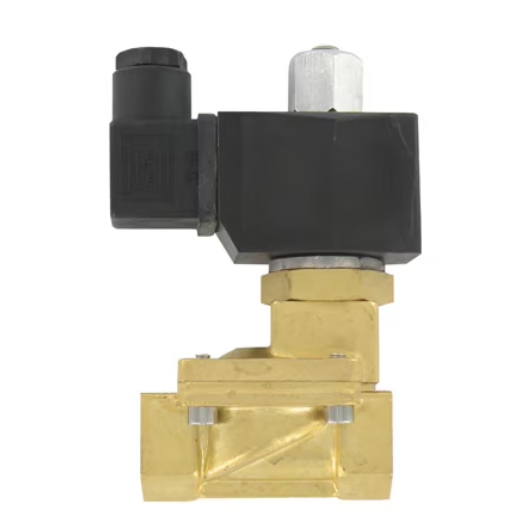

Dwyer SSV-B Brass Solenoid Valve | Direct-Acting Normally Closed

DWYER SSV-B -BRASS SOLENOID VALVE  | DIRECT-ACTING NORMALLY CLOSED

The Dwyer Series SSV-B is a high-performance, direct-acting brass solenoid valve designed for reliable, rapid-response control of air, gas, and liquid media in industrial and commercial applications.

A rugged, 2-way normally closed (NC) brass solenoid valve engineered for fast-acting flow control of compatible liquids and gases.

  • Can be oriented in any position
  • Compact design
  • Field replaceable coils



DWYER SSV-B -BRASS SOLENOID VALVE  | DIRECT-ACTING NORMALLY CLOSED

The Series SSV-B is a direct-acting solenoid valve, meaning it does not require a minimum pressure differential to operate, making it ideal for low-pressure or gravity-fed systems. Constructed with a heavy-duty brass body and high-quality Viton® (FKM) seals as standard, it offers excellent chemical resistance and durability. The valve features a NEMA 4 (IP65) rated coil with a DIN connector, providing superior protection against water spray and dust in harsh environments.

PRODUCT USES:

  • Low Pressure Systems: Vacuum applications and gravity-fed liquid lines.
  • Automation: High-speed cycle operations in manufacturing and packaging.
  • HVAC/R: Control of refrigerant gases or water-based cooling loops.
  • Process Control: Reliable shut-off for neutral gases and light oils.







Technical Sheets

Instruction Manual

Catalog Page

Specifications

DWYER SSV-B -BRASS SOLENOID VALVE  | DIRECT-ACTING NORMALLY CLOSED – KEY SPECIFICATIONS

  • Operation: 2-Way Direct-Acting, Normally Closed (NC).
  • Line Sizes: 1/8″ to 2″ NPT female.
  • Pressure Limit: 0 to 188.5 psi (0 to 13 bar) depending on model and voltage.
  • Temperature Limits: Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C).
  • Wetted Materials: Body: Brass; Spring: 304 SS; Seal: Viton® (FKM).
  • Enclosure Rating: NEMA 4 (IP65).
  • Power Requirements: 110 VAC, 220 VAC, 24 VDC, or 24 VAC.
