SERIES SBSV-S

Categories: ,

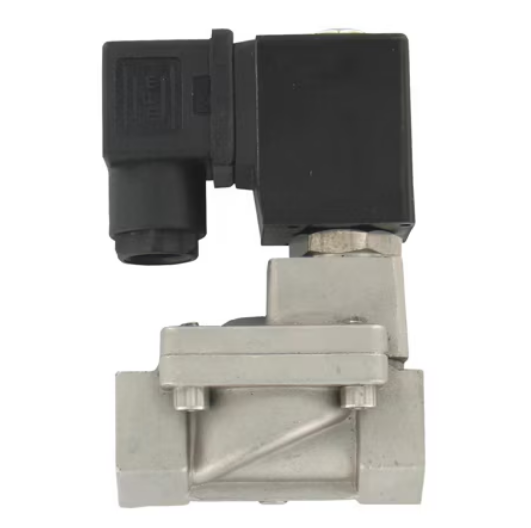

Dwyer SBSV-S Stainless Steel Solenoid Valve | 2-Way Normally Closed

DWYER SBSV-S STAINLESS STELL SOLENOID VALVE | 2-WAY NORMALLY CLOSED

A compact, normally closed (NC) 2-way stainless steel solenoid valve featuring a guided design for high-pressure air, gas, and liquid applications.

The Dwyer Series SBSV-S is a professional-grade, 2-way stainless steel solenoid valve designed for the reliable control of air, gas, water, and compatible corrosive liquids in demanding industrial environments.

  • Can be oriented in any position
  • Compact design
  • Field replaceable coils

DWYER SBSV-S STAINLESS STELL SOLENOID VALVE | 2-WAY NORMALLY CLOSED

The Dwyer Series SBSV-S is constructed with a rugged 304 stainless steel body, making it superior to brass models for applications involving mildly corrosive media or deionized water. This guided-type valve operates in a normally closed position and can be mounted in any orientation. It features a NEMA 13 (IP54) rated enclosure with a DIN connector, ensuring protection against dust and non-corrosive oil seepage.

PRODUCT USES:

  • Corrosive Media Control: Managing fluids that are incompatible with brass.
  • Water Treatment: Ideal for deionized water and pure water systems.
  • Pneumatic Systems: High-pressure air and neutral gas regulation.
  • Automation: Reliable remote switching in chemical processing and food service equipment.





Technical Sheets

Instruction Manual

Catalog Page

Specifications

DWYER SBSV-S STAINLESS STELL SOLENOID VALVE | 2-WAY NORMALLY CLOSED
– KEY SPECIFICATIONS

  • Operation: 2-Way Guided, Normally Closed (NC).
  • Line Sizes: 1/8″ to 2″ NPT female.
  • Pressure Limit: 246.6 psi (17 bar).
  • Temperature Limits: Process: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C).
  • Wetted Materials: Body: 304 Stainless Steel; Spring: 304 SS; Seal: NBR.
  • Enclosure Rating: NEMA 13 (IP54) with DIN connection.
  • Power Options: 110 VAC, 220 VAC, 24 VAC, or 24 VDC.
