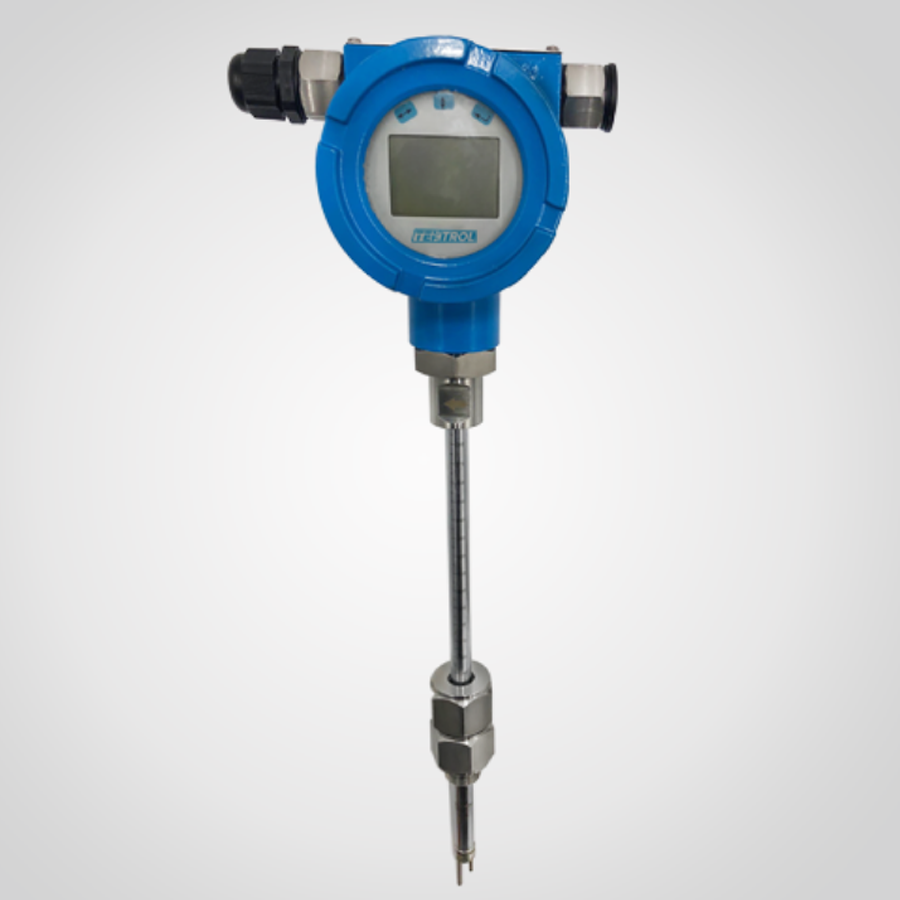

TEK- THERMAL 1700B SERIES THERMAL MASS FLOW METER

TEK- THERMAL 1700B SERIES THERMAL MASS FLOW METER

Dual line LCD display with 3 setting button
No pressure loss and it can be used on pipes from 1″ to 20″
It has more compact design, which means smaller enclosure and thinner insertion tube probe
Measure mass flow and standard flow directly
It has self diagnostic function
It has high accuracy data acquisition circuit
High effective design of power supply
Wide Turndown ratio 100:1
Due to the thin diameter probe, it can be installed in pipe very easily and without stopping all the process
Cost-effective model

Technical Sheets

Service	Air and Nitrogen
Flow Velocity Range	0.98 to 98 ft/sec or
	1.9 to 190 ft/sec or
	2.9 to 295 ft/sec or
Probe Material	316 SS
Accuracy	±0.5% of Reading
Measured Variables	Mass Flow, Volume Flow, Total Flow, Temperature, Velocity
Response Time	1 second
Temperature Limits	-40 °F to 302 °F (-40 °C to 150 °C)
Max. Pressure Limit	232 PSI
Mounting Orientation	Horizontal or vertical
Process Connection	Insertion NPT
Output	4 to 20mA and Pulse standard; Modbus RS485 or HART optional
Power Requirements	13.5 VDC to 42 VDC or 85 VAC to 265 VAC
Enclosure Rating	IP65
