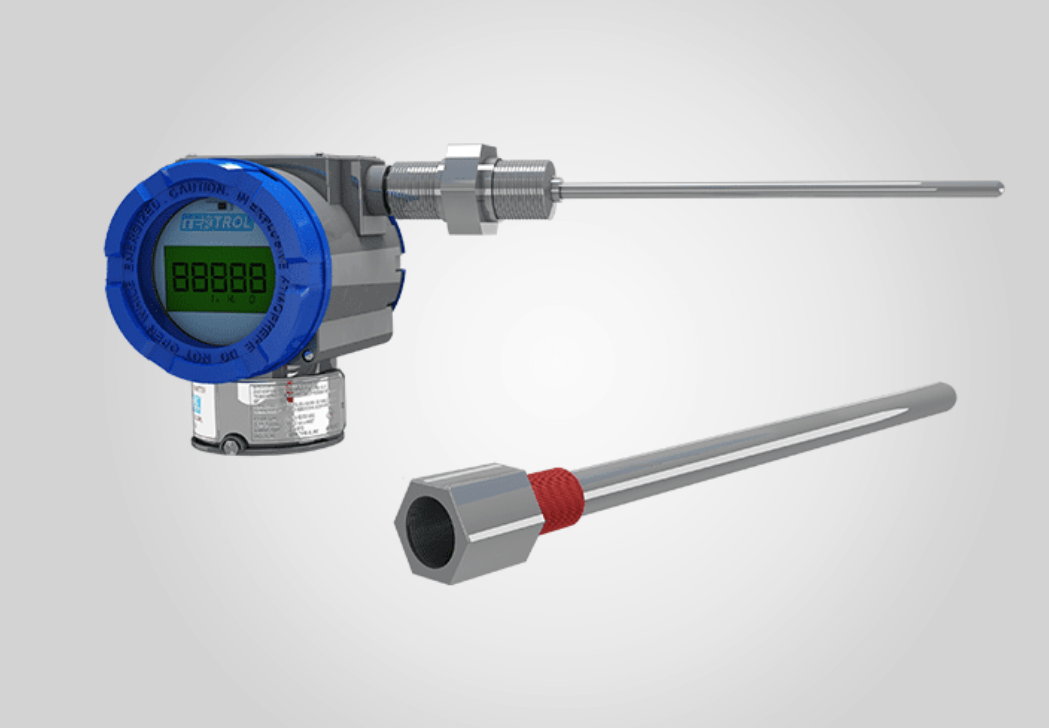

TEKTROL-TEMP 2100A SERIES EXPLOSION-PROOF TEMPERATURE TRANSMITTER

TEK-TEMP 2100A

The Tek-Temp 2100A (manufactured by Tek-Trol) is a high-performance, microprocessor-based explosion-proof temperature transmitter designed for hazardous industrial environments. A rugged, FM-approved temperature transmitter that accepts universal inputs (RTD, Thermocouple, mV, and Ohm) and provides a standard 4-20 mA output with HART® communication. It is specifically designed for high-precision monitoring in oil, gas, chemical, and pharmaceutical industries.

TEK-TEMP 2100A

The Tek-Temp 2100A converts signals from temperature sensors into an amplified, standard analog format for long-distance transmission to control devices. It features a dual-compartment housing to isolate the electronics from field wiring, ensuring durability and immunity to electromagnetic interference. The unit includes continuous self-diagnostic functions to monitor sensor, memory, and communication health, alongside automatic ambient temperature compensation and linearization of sensor inputs.

  • Automatic Compensation of Ambient Temperature
  • Superior Performance & Reliability
  • Field programmable push-buttons
  • Setting Various Parameters: Zero/Span, Unit, Fail-mode, Trim, etc
  • Digital Communication with HART® protocol
  • Self-Diagnostic Function
  • Fail mode function
  • EEPROM Write functions
  • LCD Screen and Housing rotation

PRODUCT MARKETS

  • Boiler House Instrumentation
  • Oil And Gas Brochure



Technical Sheets

Instruction Manual

Catalog Page

Specifications

TEK-TEMP 2100A – KEY SPECIFICATIONS

  • Accuracy: High precision of ±0.03% to ±0.1% of Full Scale (FS) depending on input type.
  • Inputs: Supports RTDs (Pt100, 2/3/4-wire), Thermocouples (Types B, E, J, K, N, R, S, T), millivolts, and resistance.
  • Output Signal: 4-20 mA with HART® digital communication.
  • Power Supply: 12 to 45 VDC.
  • Enclosure Rating: FM Explosion-Proof (Class 1, Division 1) and IP67 waterproof.
    Housing Material: Standard Aluminum or optional Stainless Steel.
  • Display: Optional 5-digit LCD for local temperature monitoring in °C or °F.
  • Temperature Limits: Operating ambient limits of -40°F to 140°F (-40°C to 60°C)
