Tek-Trol Tek-Sub 4800A PTFE Submersible Level Transmitter | Acid Resistant
TEK TROL TEK SUB 4800 PTFE SUBMERSIBLE LEVEL TRANSMITTER  | ACID RESISTANT

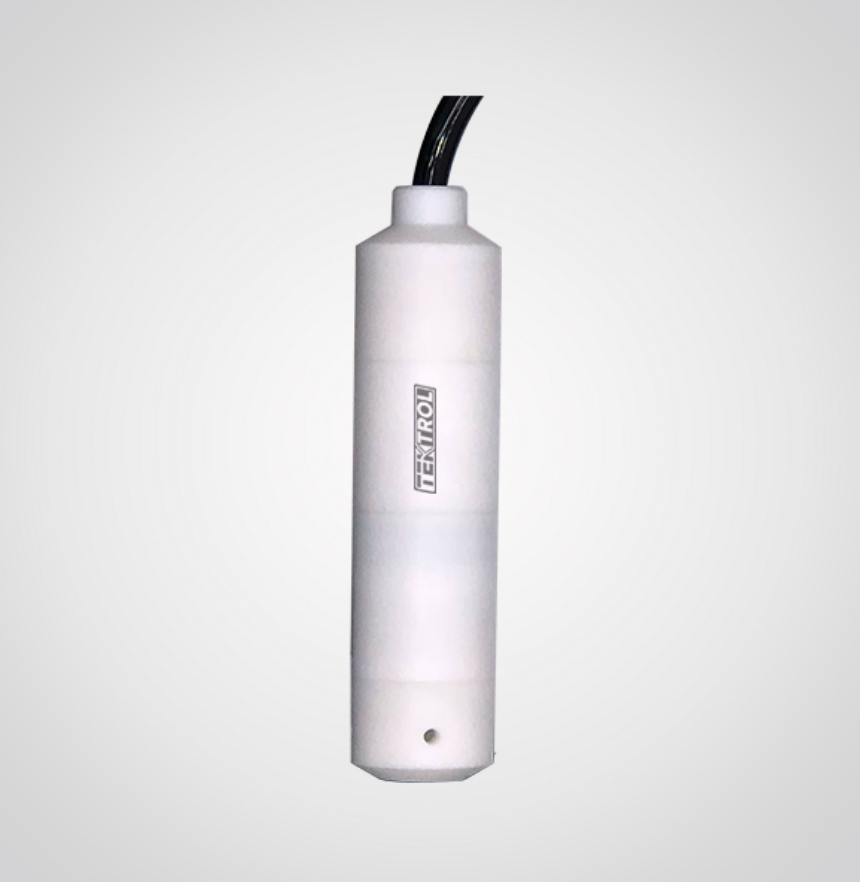

The Tek-Trol Tek-Sub 4800A  is a high-accuracy, PTFE-housed submersible level transmitter designed specifically for continuous level measurement in aggressive and corrosive fluids.

The Tek-Sub 4800A PTFE Submersible Level Transmitter has been designed for continuous submersion in aggressive fluids. This submersible device uses a rugged ceramic pressure sensor encased in PTFE housing that provides excellent corrosion resistance in most fluids. It facilitates simple installation, easy cleaning and years of trouble-free service with almost no maintenance. The device guarantees stability and reliability in harsh environments.The Tek-Sub 4800A operates on 12-36 VDC power. Available outputs are 4-20 mA, 0.5-4.5 VDC or RS-485.

TEK TROL TEK SUB 4800 PTFE SUBMERSIBLE LEVEL TRANSMITTER

The Tek-Sub 4800A  utilizes a rugged ceramic pressure sensor encased in a chemical-resistant PTFE (Teflon) housing. Operating on the principle of hydrostatic pressure measurement, it calculates the filling height of a vessel based on the weight of the liquid column above the sensor. It is engineered for stability in harsh environments, featuring a completely sealed IP68 construction and a vented cable to compensate for atmospheric pressure changes. With no moving parts and factory-calibrated settings, it provides a low-maintenance solution for long-term service in tanks and wells containing chemicals or slurries.

PRODUCT USES:

  • Chemical Storage Tanks: Monitoring aggressive liquids like acids, lye, and brine.
  • Water & Wastewater: Level measurement in treatment plants and sewage lift systems.
  • Industrial Process Control: Real-time monitoring of corrosive fluid levels in pressurized or open tanks.
  • Slurry Monitoring: Reliable performance in tanks containing muddy liquids and thick slurries.
  • Environmental Monitoring: Hydraulic monitoring in seas, rivers, and sludge pits.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

TEK TROL TEK SUB 4800 PTFE SUBMERSIBLE LEVEL TRANSMITTER  | ACID RESISTANT – KEY SPECIFICATIONS

  • Measuring Range: 2.8 psig to 15 psig (approx. 2 m to 10.5 mH₂O).
  • Accuracy: ±0.5% of Full Scale (max.).
  • Housing Material: PTFE (Polytetrafluoroethylene) for superior corrosion resistance.
  • Diaphragm Material: High-quality Ceramic (Al₂O₃, 96%).
  • Output Signal: 4-20 mA (Standard), RS-485 Modbus, or 0.5 to 4.5 VDC.
  • Power Supply: 12 to 36 VDC.
  • Operating Temperature: -20 °F to 160 °F (-29 °C to 71 °C).
  • Protection Rating: IP68 (Fully Submersible).
  • Stability: Long-term stability of ±0.2% FS/year (typical).
