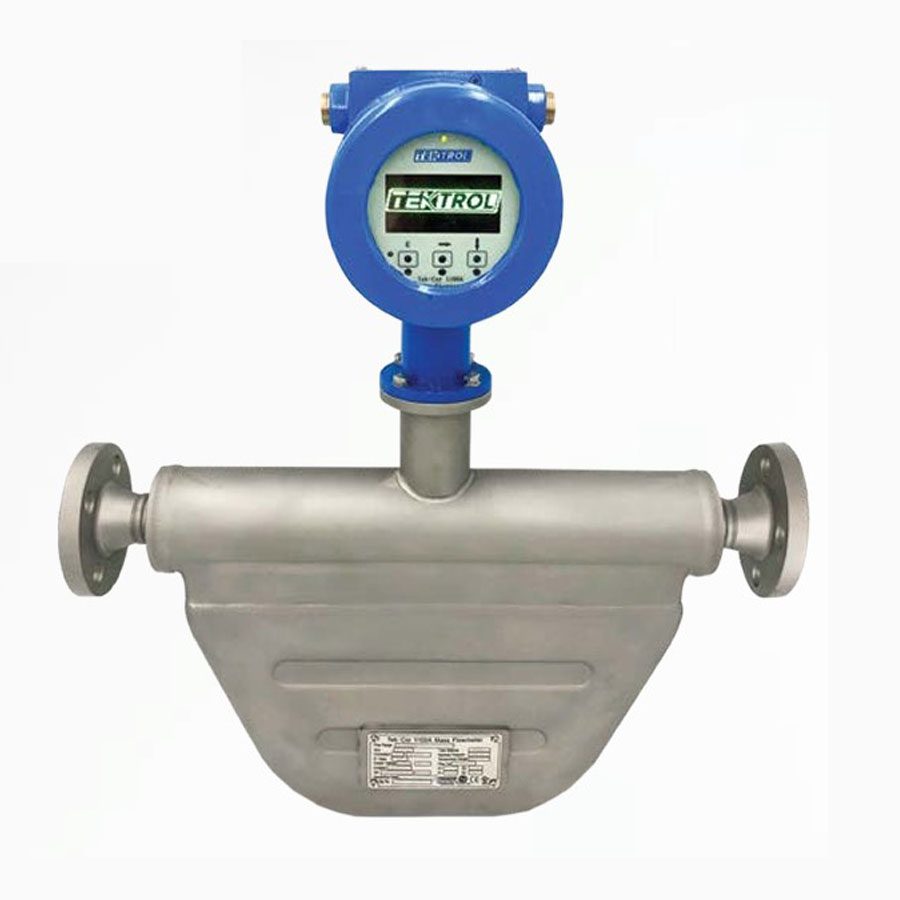

TEK-COR 1100A SERIES CORIOLIS FLOW METER
Our Coriolis flow meter consists of two parallel tubes that are made to oscillate using a magnet. These oscillations are recorded by sensors fitted at the inlet and outlet of each tube. In a no-flow state, the oscillations are synchronized, i.e. in phase with each other, since there is no mass exerting any force on the tubes. On the other hand, any fluid, or gas flowing through the tubes generates Coriolis forces, causing the tubes to twist in proportion to the mass flow rate of the medium.
- Suitable for aggressive and contaminated media.
- Measurement and Display of percent water-cut for oil or water mixtures.
- High Phase Shift Frequency.
- Measuring tubes vibrated at natural frequency.
- Short response time.
- No moving parts.
- Full Sensor Diagnostics.
- Measures mass flow, density, temperature, and volume flow with high accuracy.
- OLED with 2 line display.
- Multiple Flange (150# To 900#) and Process Connections.
- Net Oil Measurement.
- Density accuracy upto 0.001 g/cm3 (Consult Factory for better).
- Suitable for harsh conditions.
- Process Temp Ranges From -200 to 300°F.
- Ul Class I Div I and NTEP Approved.
- Certified for use in Fiscal and Custody Transfer Applications
Specifications
TEK-COR 1100A SERIES CORIOLIS FLOW METER
| Accuracy |
±0.05%, ±0.1%, ±0.2% or ±0.5% |
| Density Accuracy |
0.001g/cm3 (Consult Factory for Better) |
| Repeatability |
± 0.05% (for 0.1% accuracy), ± 0.1% (for 0.2% accuracy),
±0.25% (for 0.5% accuracy) or ± 0.05% (for 0.05% accuracy) |
| Sensor Type |
Standard, U Tube, Super Bend, Straight Tube, Dual Path |
| Process Media |
Liquid or Gas |
| Transmitter |
Digital type/Analog type |
| Power Supply |
18-28VDC, 85-220VAC |
| Maximum Pressure |
For 3/8” to ½” |
3600psi (25MPa), |
| For 1” |
2300psi (16MPa) |
| For 1 ½” to 2” |
1500psi (10MPa) |
| For 3” to 4” |
900psi (6MPa) |
| For 6” to 24” |
580psi (4mpa) |
| Signal Output |
4-20 mA and Pulse , Optional: HART, Modbus RS485 or Ethernet |
| Process Connections |
DIN, ANSI Flanges, NPT, Flare, Tri-Clamp |
| Electronics |
Direct Mount or Remote Mount |
| Diagnostic Functions |
Reset Totalizer |
| Graphic Display |
OLED |
| Operating Elements |
3 optical keys for operator |
| Additional Features |
Low Flow Cut-off, Oil and Water Content Analysis, Zero Calibration, Flow Calibration,
Long-Term Stability, Zero Point Adjustment, Conforms IEC 61362 (Industrial) EMC
Directive, Useful for all type of sensors i.e. U-Tube, Standard |
| Temperature Range |
Standard |
-60°F to 260°F |
| Low |
-300°F to 260°F |
| High |
-60°F to 720°F |
