TEK-CLAMP 1200A ULTRASONIC CLAMP-ON FLOWMETER

TEK-CLAMP 1200A ULTRASONIC CLAMP-ON FLOWMETER

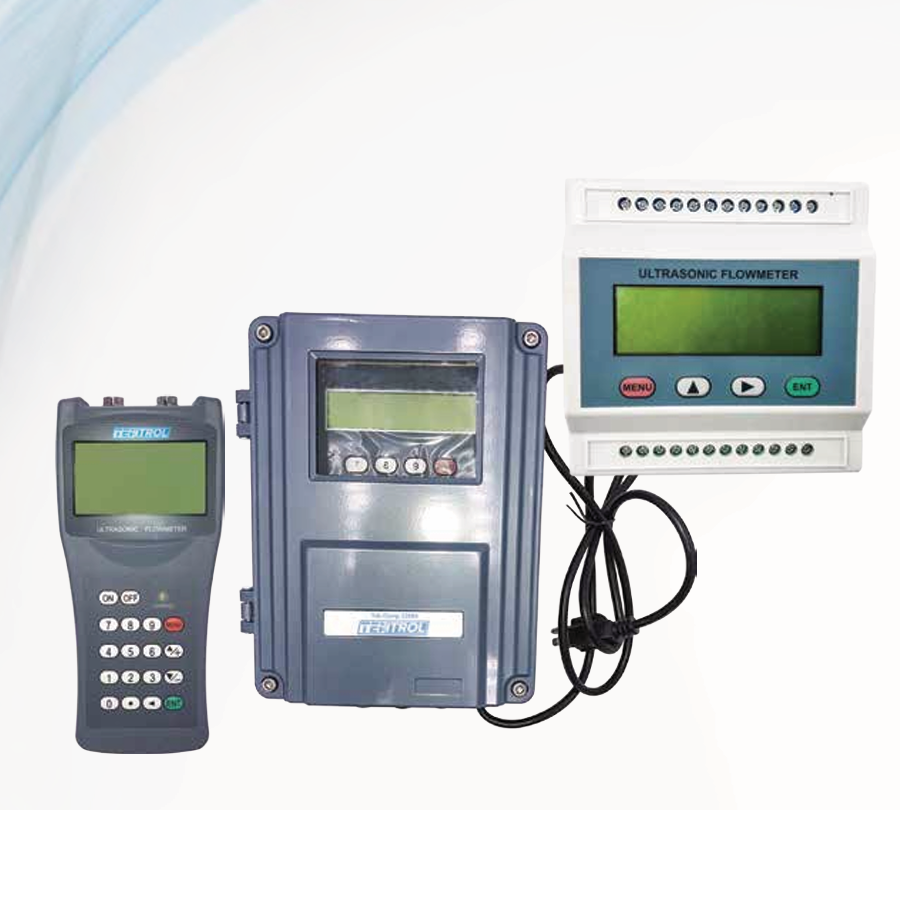

Tek-Clamp 1200A Ultrasonic Clamp On Flow Meter is designed to measure the fluid velocity of liquid in a full or closed pipe. It is a measurement system which is both easy to install and use. The Tek-Clamp 1200A operates according to the difference in the Transit Time of Flight measured and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next. Flow in the same direction takes less time to travel to the second transducer than flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity. The Tek-Clamp 1200A can be used for metallic, plastic, and rubber tubes.

TEK-CLAMP 1200A ULTRASONIC CLAMP-ON FLOWMETER

The TEK-CLAMP 1200A is a non-invasive, clamp-on ultrasonic flow meter for measuring liquid velocity in a full or closed pipe. It uses the transit-time of flight principle, where the difference in travel time of upstream and downstream ultrasonic pulses is used to calculate flow velocity. It is easy to install, versatile with various pipe materials, and features a built-in data logger and an LCD display.

Liquids Types: Virtually all commonly used clean liquids. Liquids with small quantity of tiny particles may also be applicable. Particle size should be less than 75um, particle concentration less than 20,000ppm. Liquids should contain no or very minor air bubbles.>

Technical Sheets

Instruction Manual
Catalog Page

Specifications

TEK-CLAMP 1200A ULTRASONIC CLAMP-ON FLOWMETER – Key Specifications

Measurement Principle: Transit time of flight
Accuracy: Better than (pm 1%)
Pipe Diameter: ½” to 200″ (wall mount) or 1” to 28” (handheld)
Liquid Compatibility: Clean liquids, including potable water, cooling water, chemicals, and liquids with small particles (less than (75m) or (20,000ppm) concentration)
Keypad: 4 x 4 key touch membrane keypad
Display: 4 x 16-character LCD with backlight Built-in
Data Logger: Over 2000 lines of data (handheld model)
