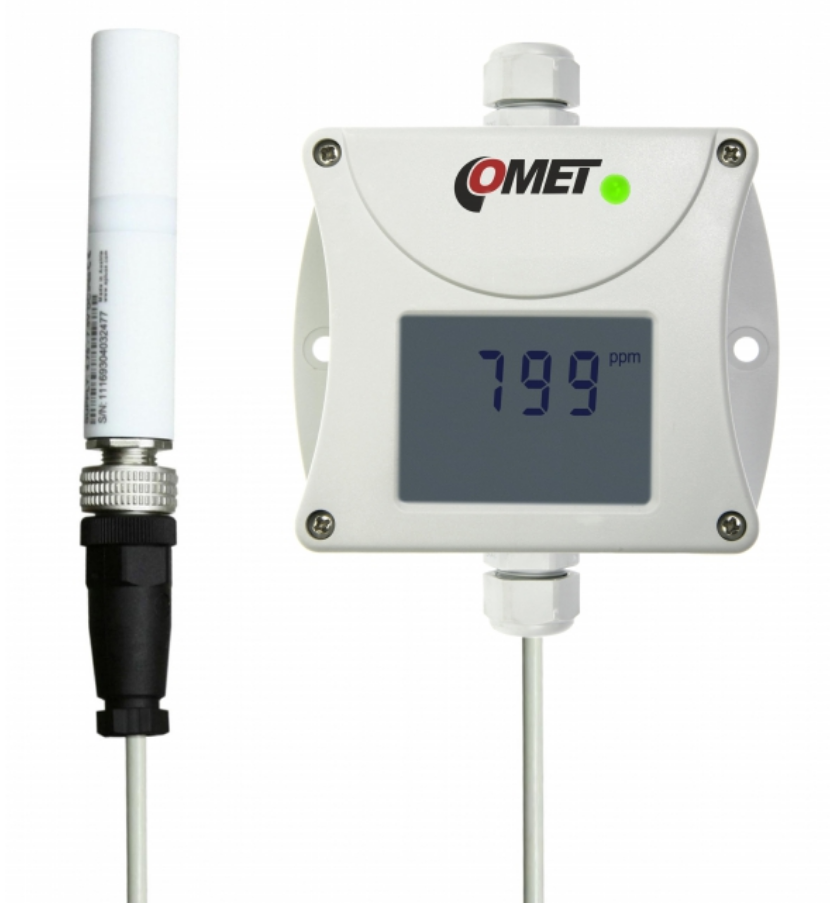

Comet T5141 Industrial \(CO_{2}\) Transmitter | 4-20mA Output & External Probe

COMET T5141 INDUSTRIAL \(CO_{2}\) TRANSMITTER | 4-20mA OUTPUY & EXTERAL PROBE

The Comet T5141 is an industrial-grade programmable transmitter specifically designed for measuring carbon dioxide (\(CO_{2}\)) concentrations in demanding environments using an external probe.

  • CO2 – carbon dioxide level sensor.
  • CO2 concentration transmitter with 4-20mA output is built in a durable watertight case.
  • Output range is user adjustable. Large dual line LCD is an advantage. Display is possible to switch off.
  • The device is supplied with CO2 probe with 1m cable. Cable lengths 2 or 4 meters available optionally.





COMET T5141 INDUSTRIAL \(CO_{2}\) TRANSMITTER | 4-20mA OUTPUY & EXTERAL PROBE

The T5141 uses advanced dual-wavelength NDIR technology to monitor \(CO_{2}\) levels up to 10,000 ppm. This measurement principle automatically compensates for sensor aging, providing maintenance-free operation and excellent long-term stability. The device is housed in a rugged IP65-rated enclosure and includes a large dual-line LCD for real-time monitoring. Users can easily adjust the output range via a PC using the free TSensor software.

PRODUCT USES:

  • Industrial process monitoring and control.
  • HVAC and ventilation optimization for healthy indoor climates.
  • Environmental monitoring in greenhouses or agricultural facilities.
  • Outdoor \(CO_{2}\) measurement (thanks to its rugged IP65 design).









Technical Sheets

Instruction Manual

Catalog Page

Specifications

COMET T5141 INDUSTRIAL (CO_{2}) TRANSMITTER | 4-20mA OUTPUY & EXTERAL PROBE – KEY SPECIFICATIONS

  • Measured Value: Carbon Dioxide ((CO_{2})) concentration.
  • Measuring Range: 0 to 10,000 ppm.
  • Accuracy: (pm (110text{ ppm}+5%text{ of reading})) at 25°C and 1013hPa.
  • Output: 4-20 mA (user-adjustable range).
  • Power Supply: 9-30 VDC.
  • Protection Class: IP65 (watertight enclosure).
  • Probe: External probe with 1m cable (2m or 4m optional)
  • Operating Temp: -30 to +80 °C (electronics).
