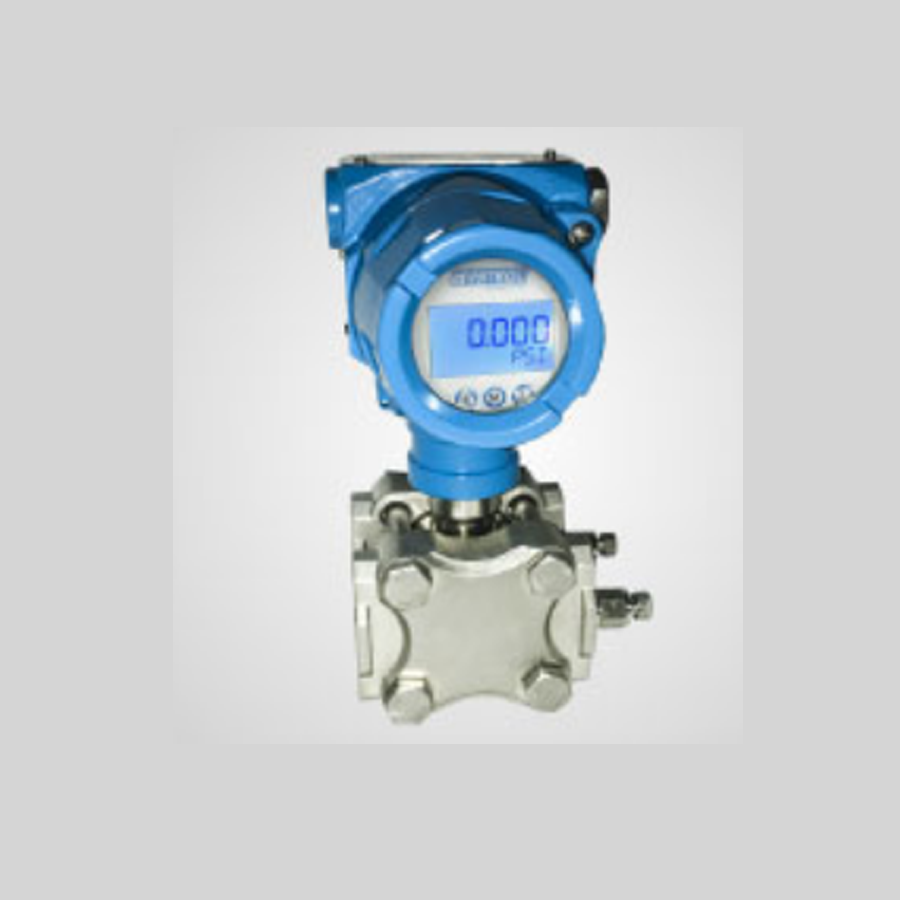

TEK-BAR 3110B – Furneco

TEK-BAR 3110B

Digital communication HART protocol
High performance
High accuracy up to ±0.075%
It can be used to measure liquid, gas, and steam flow as well as liquid level, density, and pressure
Various Output: 4-20 mA, digital signals with HART®️ Communication (Modbus RS485)
Multiple temperature and linearity compensation to improve accuracy
Fully-sealed and fully isolated silicon pressure sensor
Superior stainless-steel process flange
Dual diaphragm overload protection, can easily cope with overload tests
CSA Class I Div I Approved

Technical Sheets

TEK-BAR 3110B

Flexible Absolute Pressure Sensor input Yes	Working Pressure Limits (silicone oil) 0 to 400 kPa for Range 4 0 to 1500 kPa for Range 5 0 to 3000 kPa for Range 6
Hydrostatic Test Pressure Range 4: 58 psi (400 kPa) Range 5: 218 psi (1500 kPa) Range 6: 435 psi (3000 kPa)	Burst Pressure 2000 psig (13.8 MPa)
Output 4 ~ 20mA (Analog), Digital Signals	High Accuracy ±0.075% of Span (at 20°C)
Range Ability High Rangeability (100:1)	Automatic Compensation Automatic Compensation of Ambient Temperature
Programmable Parameters Zero/Span, Fail-mode, Unit, Trim, etc	Digital Communication HART protocol, command
Display 5 Digit LCD	Model Name APT3100
Protocol 4 to 20mA + Digital Communication, HART 5	Trim ability Zero, DAC, FULL
Power Supply & Load Requirement 250 to 550 ohm @ 24 Vdc, Loop Powered	Failure Mode Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons Zero & Span 2 buttons for device configuration	Process Temp. Limit -40 to 120℃ (-104 to 248℉)
Range Ability 100:1	Stability ±0.125% URL for 36 months
