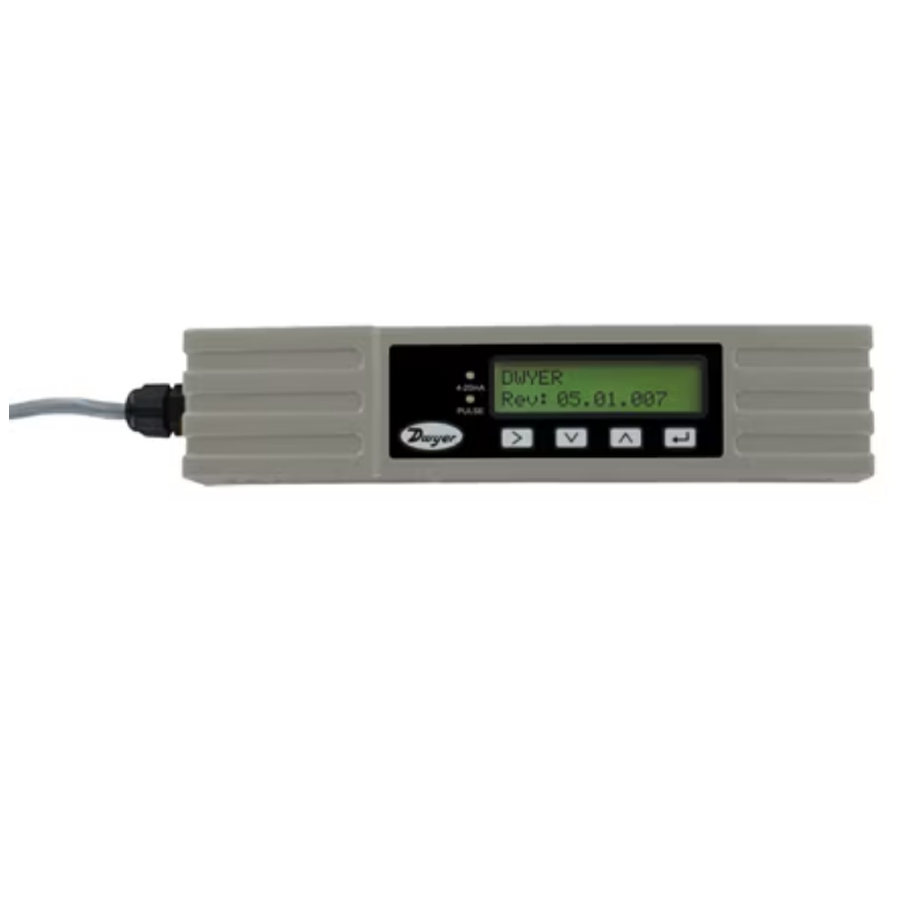

SERIES-UFM2 CLAMP-ON ULTRASONIC FLOWMETER
- Save on installation costs with non-invasive pipe measurement
- Simplified installation with all necessary components included, such as converter, sensor, cables and mounting accessories
- Fit application requirements with compact and lightweight design, that can be easily installed, all in one clamp-on unit intended for homogeneous liquids that contain no air
- Cut down evaluation time with easy-to-read text displaying both flow rate and total with
Kit Includes:
- Converter with adjustable guide rail
- Set of pipe clamps (model dependent)
- Set of small pipe adapter circle clamps
- Set of small pipe adapter V clamps
- Ultrasonic coupling grease
Product Applications:
- Flow measurement for heat metering
- Metering and monitoring in: Chilled water, Potable water, Process water
Specifications
SERIES-UFM2 CLAMP-ON ULTRASONIC FLOWMETER
Key Specifications
- Accuracy± 3 %
- Accuracy Detail± 3% of flow reading for >0.98 ft/s (>0.3 m/s)
- Applications Fluid Measurement and Control
- Compliance CE
- Display Note Backlit: 3.27˝ H x 0.74˝ W (83.1 mm x 18.8 mm), 2 line x 16 characters
- Display TypeLCD
- Electrical ConnectionCable
- Enclosure RatingsIP54
- Linear Flow Rate, Max32.8 ft/s
- Linear Flow Rate, Min0.33 ft/s
- Load Resistance620 Ω max
- MaterialsPolycarbonate
- Media CompatibilityWater
- Operating Temperature, Max122 °F
- Operating Temperature, Min32 °F
- Output DetailAnalog: 1 opto-isolated: 4-20 mA; Error current: 3.5 mA; Load resistance: 620 Ω max; Pulse: 1 opto isolated MOSFET relay, 500 mA max, 166 pps max, 200 Hz max
- Output SignalCurrent, DC Pulse
- Power Consumption7 W
- Process Temperature, Max185 °F
- Process Temperature, Min32 °F
- Repeatability± 0.15%
- Repeatability Note± 0.15% of measured value
- Response Time<1 s
- Supply Power TypeAC/DC
- Supply Voltage12 to 24 Vac/Vdc
- Tube Wall Thickness0.39 in
- Weight2.9 lb
