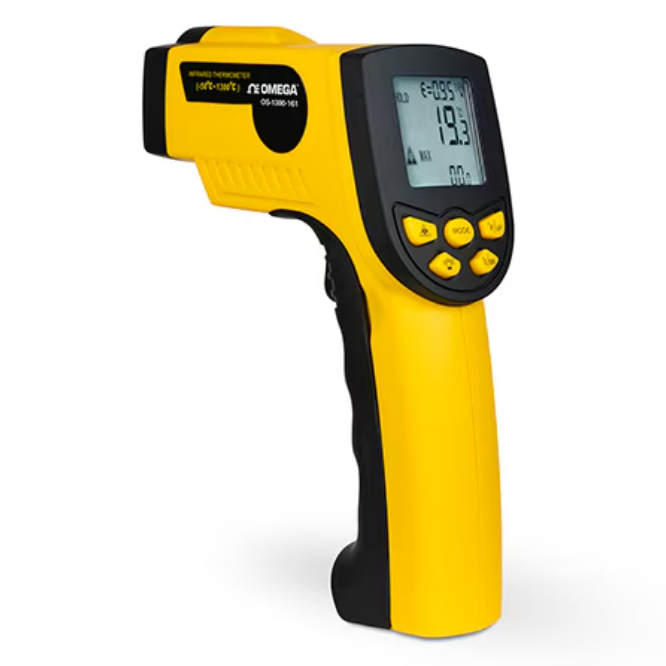

OS1300-SERIES HANDHELD INFRARED THERMOMETER

The Omega OS1300-Series  is a high-performance, non-contact handheld infrared thermometer used for safely measuring temperatures of hot, hazardous, or hard-to-reach objects.

FEATURES:

  • Measurement Modes: Includes Min/Max/Average/Difference (DIF) temperature readings.
  • Alarms: Programmable High and Low temperature alarms to alert users when set points are exceeded.
  • Data Hold: Automatically holds the last reading on the display when the trigger is released.
  • Power Management: Uses one 9V battery and includes an auto-power off feature to conserve battery life.

OS1300-SERIES HANDHELD INFRARED THERMOMETER

The OS1300-Series handheld infrared thermometer is a non-contact temperature sensing thermometer. It has a wide temperature range of -50 to 1300°C (-58 to 2372°F). This thermometer features a backlit display which is automatically illuminated when the trigger is pulled and allows working in poor or zero-lighting conditions. The single laser is also automatically active when the trigger is pulled. The laser sight can be turned on and off with the press of a button. The laser is located above the IR sensor to locate the center of the area being measured and this series has a field of view of 16:1. The thermometer constantly updates the temperature measurement as long as the trigger is held in and will “hold” on the last temperature seen when the trigger is released. The OS1300-Series has adjustable emissivity, min, max, and averaging functions, as well as high and low alarm capability. This safely measures surface temperatures of hot, hazardous, or hard-to-reach objects without contact.



Technical Sheets

Instruction Manual

Catalog Page

Specifications

OS1300-SERIES HANDHELD INFRARED THERMOMETER

Temperature Range: Wide range of -50 to 1300°C (-58 to 2372°F).

Field of View (Distance to Spot Ratio): A 16:1 ratio allows measurement of a small target area from a safe distance.

Accuracy: Above 0°C (32°F): ±2% of reading + 2°C. -50°C to 0°C: ±3% of reading + 3°C.

Emissivity: Adjustable from 0.10 to 1.00 to ensure accurate readings on various surfaces.

Response Time: Fast measurement speed of 500 milliseconds.

Display: Features a large, backlit LCD screen with a single laser sight that can be toggled on/off.
