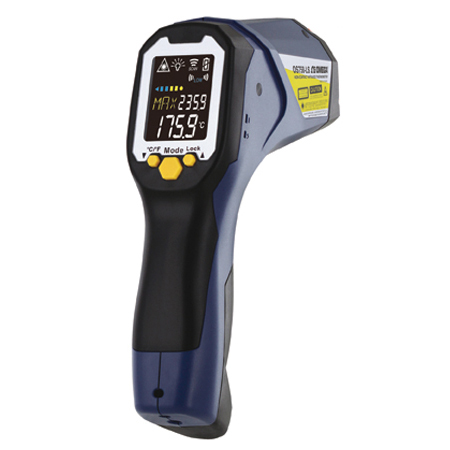

SERIES LS-OS758 – DUAL LASER INFRARED THERMOMETER
The Omega OS758-LS is a high-performance, handheld dual-laser infrared thermometer designed for non-contact industrial temperature measurement up to 1600°C (2912°F). It features a rugged, shatterproof design and both infrared and Type K thermocouple inputs for versatility.
APPLICATIONS:
- Industrial maintenance and troubleshooting
- Building maintenance
- Laboratory and R&D
TECHNICAL SUMMARY
- Range: -35 to 1600°C (-31 to 2912°F).
- Optical Ratio: 60:1 distance-to-spot ratio for precise measurement of small targets from a distance.
- Storage: Includes a microSD card slot (SD card typically included) and internal memory for 24 records.
- Inputs: Supports both non-contact IR and Type K Thermocouple contact measurements.
Technical Sheets
Comprehensive overview of technical specifications, range data, and distance-to-spot ratios.
Instruction Manual
Specifications
SERIES LS-OS758 – DUAL LASER INFRARED THERMOMETER – KEY SPECIFICATIONS
Measurement Range (IR): -35 to 1600°C (-31 to 2912°F).
Measurement Range (Type K T/C): -35 to 1600°C (-31 to 2912°F).
Distance to Spot Ratio (D:S): A narrow 60:1 field of view allows for accurate measurement of small targets from a safe distance.
Accuracy: ±2% of reading or 2°C (4°F), whichever is greater, for temperatures above 0°C.
Emissivity: Adjustable from 0.1 to 1.0 (0.95 default) for accurate readings on various surfaces.
Data Storage: Includes a microSD card slot (SD card included) for extensive data logging, along with 24 internal memories.
Connectivity: Features USB output for interfacing with a PC.
Display: Color backlit LCD with Hi/Low temperature alarms and max/min/avg/diff temperature monitoring modes.
Durability: Rugged design is shatterproof from a 1 meter (3.3 ft) drop and has an ergonomic rubber boot handle.
