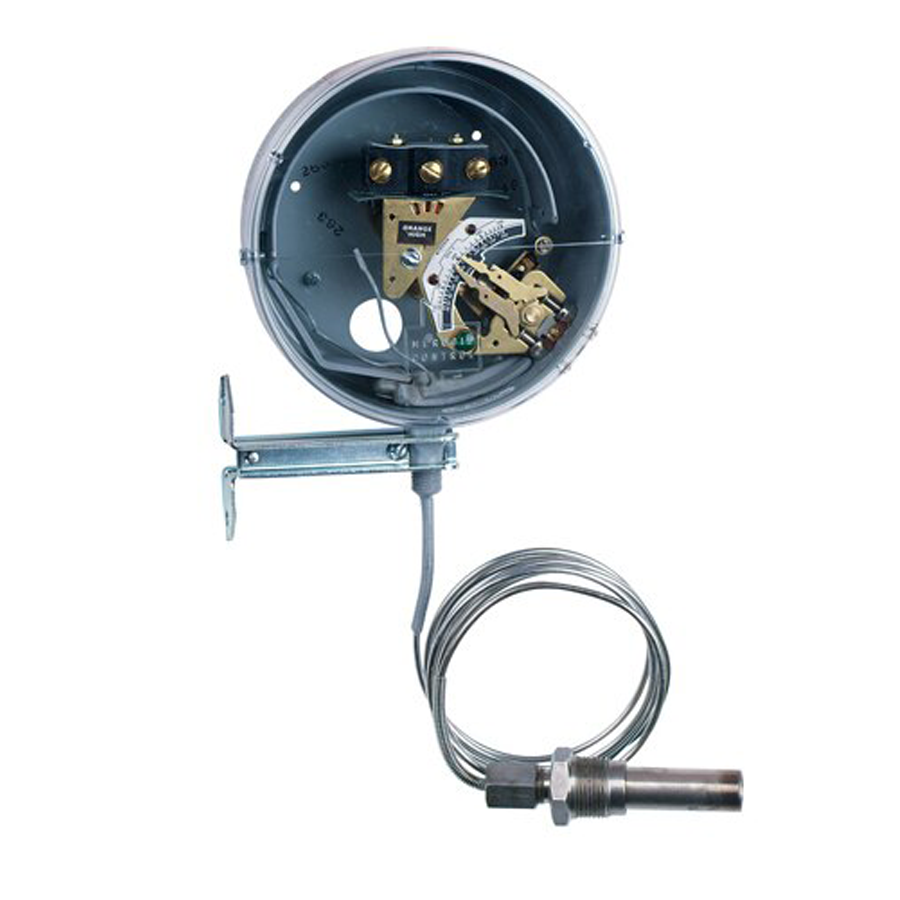

Series-DA- 7035N High Sensitivity Temp Switch, Adjustable Deadband, External Adjustments
Categories:
Temperature, Temperature Switches
The Series DA-7035N Temperature Switches include the same time-proven switching mechanism used in our Series DA pressure switches. Bourdon tube ensures high sensitivity and long life. Fully adjustable deadband makes units suitable for a wide range of control applications. Visible, calibrated dial and external adjustments make changing set points simple and fast.
Product Applications
- Mechanical process temperature monitoring
Specifications
Additional Features 1
See web page for additional option models such as: switch type enclosures, fixed deadband, longer or shorter capillary, armored capillary, wells, two stage, 1/2˝ or 1˝ connection sizes, manual reset
See web page for additional option models such as: switch type enclosures, fixed deadband, longer or shorter capillary, armored capillary, wells, two stage, 1/2˝ or 1˝ connection sizes, manual reset
Capillary Length
6 ft
6 ft
Electrical Connection
1/2 in NPT female Conduit with Screw Terminal block
1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings
General purpose
General purpose
Enclosure Ratings Note
General purpose. Optional weatherproof and explosionproof
General purpose. Optional weatherproof and explosionproof
Materials, Wetted
304 Stainless Steel
304 Stainless Steel
Media Compatibility
Ammonia, Chlorine, Compatible Gases, Compatible Liquids, Hydrochloric Acid, Sulfuric Acid
Ammonia, Chlorine, Compatible Gases, Compatible Liquids, Hydrochloric Acid, Sulfuric Acid
Operating Temperature, Max
180 °F
180 °F
Pressure Limits
Up to 300 psi
Up to 300 psi
Process Connection Size
3/4 in
3/4 in
Process Connection Type
NPT Male
NPT Male
Repeatability
± 1%
± 1%
Set Point Adjustment
External Knobs for Set Point and Reset Point
External Knobs for Set Point and Reset Point
Set Point Scale
Indication in °F and °C
Indication in °F and °C
Switch Note
SPDT snap switch. Optional DPDT snap and a variety of mercury switches. 10 A @ 120/240/480 VAC
SPDT snap switch. Optional DPDT snap and a variety of mercury switches. 10 A @ 120/240/480 VAC
Switch Rating
10 A @ 120/240/480 Vac
10 A @ 120/240/480 Vac
Switch Type
SPDT Snap
SPDT Snap
Weight
5 lb
5 lb
