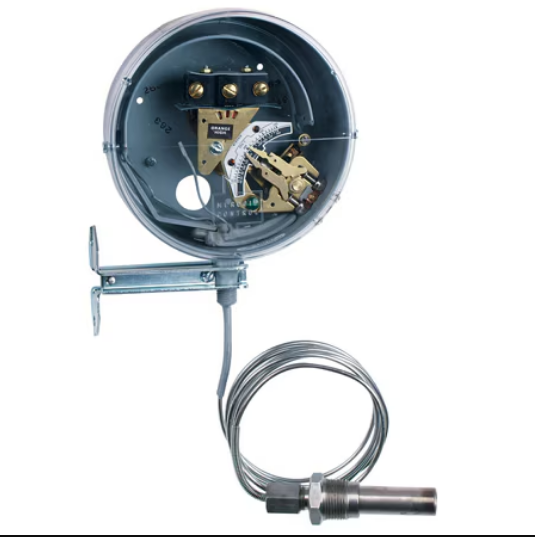

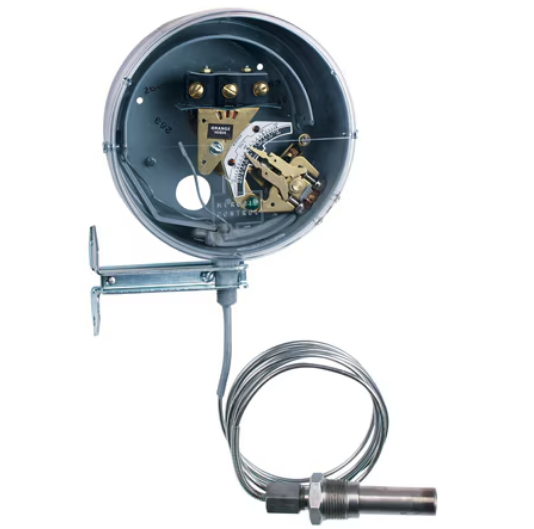

DWYER SERIES DA-7035N
A rugged, industrial-grade temperature switch featuring a gas-activated Bourdon tube for high sensitivity and long life. It is designed with a visible calibrated dial and dual external adjustment knobs for independent control of high and low setpoints.
DWYER SERIES DA-7035N
The Series DA-7035N utilizes the same time-proven switching mechanism found in Dwyer’s DA pressure switches. The inert gas-filled Bourdon tube ensures that there are no cross-ambient temperature effects or corrections needed for bulb elevation. Its fully adjustable deadband (differential) allows it to be tailored for a wide range of control applications in compatible liquids and gases.
PRODUCT APPLICATIONS
DWYER SERIES DA-7035N – KEY SPECIFICATIONS
Service: Compatible liquids or gases.
Wetted Materials: Bulb and connection are 304 Stainless Steel.
Temperature Limits: Ambient temperature up to 180°F (82°C); Process limits vary by specific range model.
Pressure Limit: 300 psi (20.6 bar).
Switch Type: Standard SPDT snap switch (10A @ 120/240/480 VAC); optional DPDT and mercury switches available.
Repeatability: ±1% of full scale.
Adjustments: Dual external knobs for setpoint and reset point; visible calibrated dial in °F and °C.
Enclosure: General-purpose aluminum; optional weatherproof or explosion-proof housings available.
Capillary: 6 ft (1.8 m) standard; material varies by range (Copper or 304 SS).
