SERIES IEF & IEFB REMOTE DISPLAY

Categories: ,
Series IEF Insertion Electromagnetic Flow Transmitter

REMOTE DISPLAY SERIES IEF & IEFB

The Series IEF Insertion Electromagnetic Flow Transmitter is an adjustable insertion flowmeter featuring electromagnetic technology that accurately and reliably measures fluid velocity in addition to providing several continuous signal outputs.

This series is specifically designed to offer superior performance paired with simple installation and use. One unit is adjustable to fit pipe sizes from 4 to 36˝ (101.6 to 914.4 mm), and offers several output options including selectable BACnet MS/TP or Modbus® RTU communications protocol over 2-wire RS-485 in addition to the standard
analog, frequency and alarm outputs.

SERIES IEF & IEFB REMOTE DISPLAY

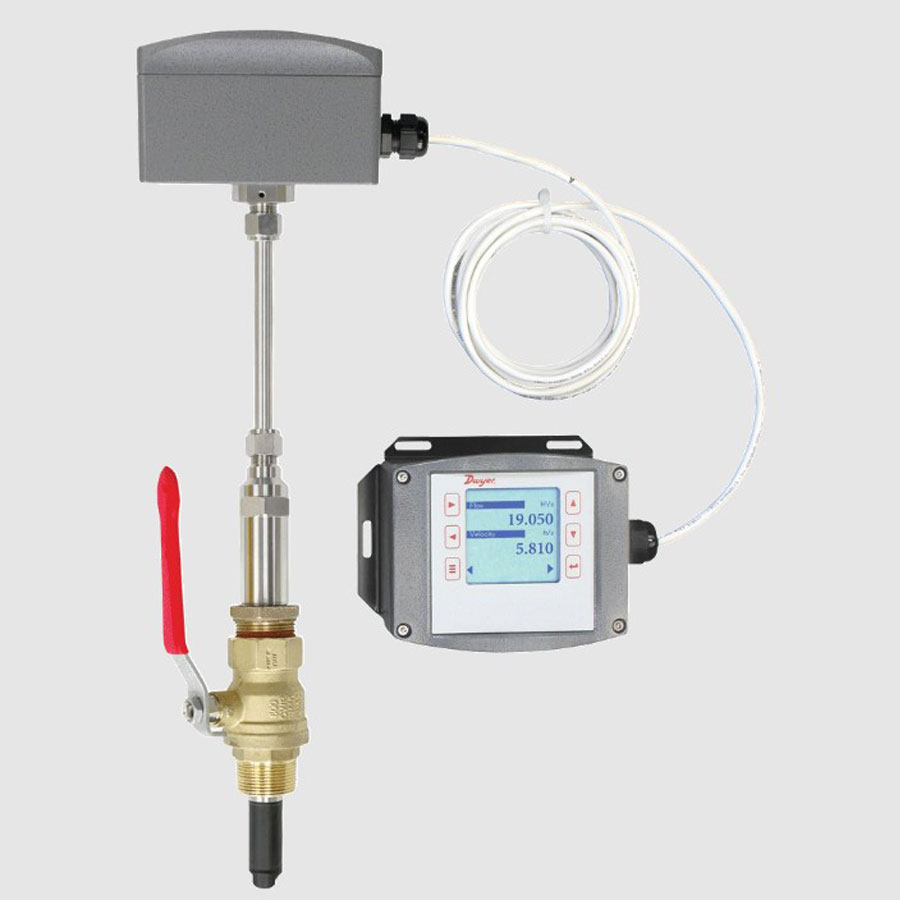

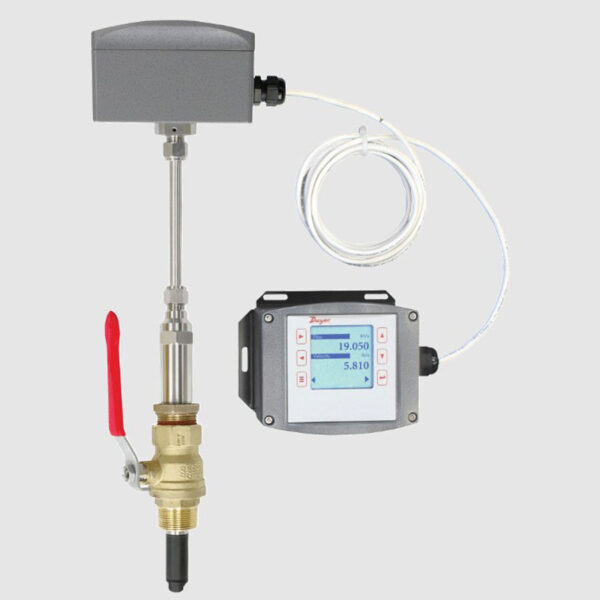

The Series A-IEF Remote Display can be installed almost anywhere near a Series IEF flow transmitter or Series IEFB thermal energy meter. Both the indicator display (A-IEF-IDSP-RM) and the full functional display (A-IEF-FDSP-RM) have a maximum display cable length of 100 ft (30 m) to permit easy viewing of flow readings. The full functional display allows for convenient adjustment of configuration settings and allows the user to save the IEF or IEFB configuration settings to a computer for printing.

Product Applications

  • Mechanical rooms with a small footprint
  • Hard-to-reach piping
  • Boilers and chillers
  • Chilled water
  • Condenser water
  • Make-up water
  • Heating water
  • Boiler feed water
  • Steam condensate

Technical Sheets

Instruction Manual
Catalog Page

Specifications

SERIES IEF & IEFB REMOTE DISPLAY

Temperature Limits: Ambient: -4 to 158°F (-20 to 70°C); Storage: -40 to 185°F (-40 to 85°C).
Display: 3.3″ diagonal graphic LCD. Backlight (full functional display only).
Enclosure Material Housing: Powder coated die cast aluminum.
Enclosure Rating: NEMA 4X (IP66).
Electrical Connection: Removable terminal blocks, #22 AWG (100 ft (30 m) max).
Mounting: Wall or pipe mount.
Mounting Orientation: Any orientation.
Weight: 2.46 lbs (1.12kg).
Compliance: CE.
