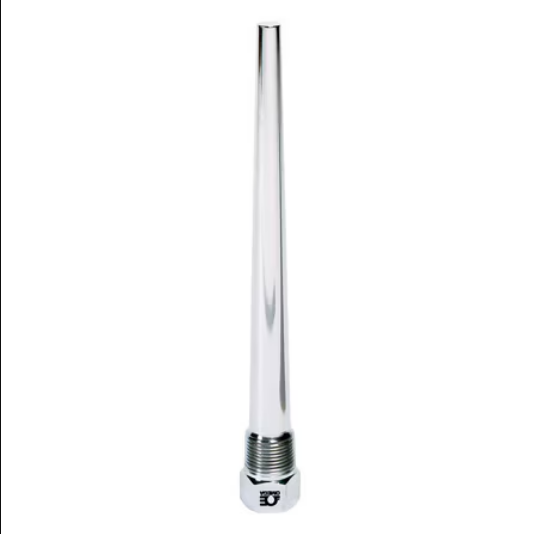

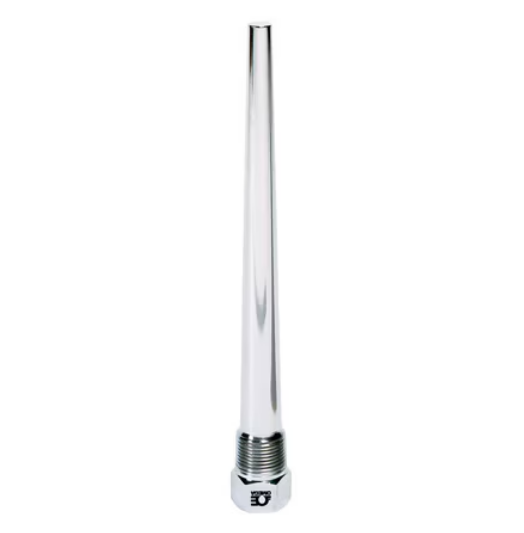

SERIES-260H 0.260 in Bore Diameter Threaded Heavy Duty Thermowells

SERIES 260S/260H OMEGA 0.260″ BORE DIAMETER THREADED THERMOWELLS

Heavy duty threaded thermowells with a 0.26-inch bore diameter, designed for 1/4 inch diameter elements. Made from rugged carbon steel or stainless steel, featuring tapered shanks and available with 3/4 inch or 1 inch external NPT threads. Standard insertion lengths range from 2.5 to 22.5 inches, suitable for industrial applications requiring durable protection for temperature sensors.

SERIES 260S/260H OMEGA 0.260″ BORE DIAMETER THREADED THERMOWELLS

The Omega 0.260″ Bore Diameter Threaded Thermowells (Series 260S/260H) are industrial-grade protective housings designed to shield temperature sensors—specifically 1/4″ diameter elements—from high pressure, flow, and corrosive environments.

These thermowells are rugged components available in straight or stepdown shank styles. They allow for the removal or replacement of a temperature sensor without needing to drain the process system. They are widely used with bimetal thermometers, #20-gauge thermocouple elements, and unarmored liquid-in-glass test thermometers.

  • Rugged Thermowell for Industrial Use
  • Available in Carbon, Steel and Stainless Steel
  • Standard Insertion Lengths from 2 1/2 to 22 1/2 Inches
  • 3/4 Inch and 1 Inch External NPT Thread

Technical Sheets

Catalog Page

Specifications

SERIES 260S/260H OMEGA 0.260″ BORE DIAMETER THREADED THERMOWELLS – KEY SPECIFICATIONS

  • Bore Diameter: 0.260 inches (designed for 0.250″ or 1/4″ diameter elements).
  • Materials: Brass (ASTM B-16), Carbon Steel (C-1018), 304 & 316 Stainless Steel, Aluminum, and Monel.
  • External Connection: Standard 1/2″, 3/4″, and 1″ NPT threads.
  • Internal Thread: 1/2″ NPSM (standard) which accepts both NPT and NPS male threads.
  • Insertion Lengths: Standard lengths range from 2.5″ to 22.5″.
  • Max Pressure: Typically rated up to 7,000 psi at 70°F (304SS models).
  • Max Temperature: Rated for processes up to 1200°F (648°C).
