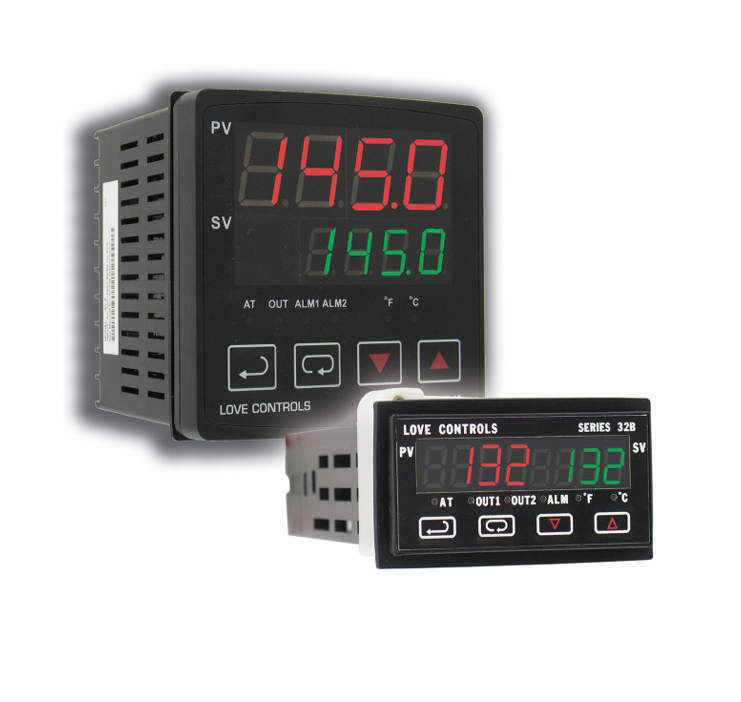

The Series 32B, 16B, 8B, & 4B Temperature/Process Loop Controllers

SERIES 16B TEMPERATURE PROCESS CONTROLLER

The Dwyer Series 16B (part of the Dwyer Love Controls line) is a 1/16 DIN temperature/process controller that features dual loop control for precise management in applications like ovens, boilers, or chillers.

  • Versatile Inputs: Accept universal signals including thermocouples, RTDs, and linear 4-20 mA/0-10V process inputs.
  • Smart Tuning: Most series feature Self-Tune PID or Fuzzy Logic to minimize temperature overshoot and stabilize processes automatically.
  • Diverse Form Factors: Available in standard DIN sizes (1/32 to 1/4) and DIN Rail mounts for compact control panels.
  • Rugged Protection: Features NEMA 4X (IP66) rated front panels, making them suitable for wash-down and dusty industrial environments.

SERIES 16B TEMPERATURE PROCESS CONTROLLER

The Dwyer Series 16B (part of the Dwyer Love Controls line) is a 1/16 DIN temperature/process controller that features dual loop control for precise management in applications like ovens, boilers, or chillers.

Dwyer Temperature and Process Loop Controllers provide high-precision PID or On/Off control for industrial thermal management.

1/32 DIN (Compact)

  • Series 32A: High-feature compact units with dual display, Fuzzy Logic, and 16-segment Ramp/Soak.
  • Series 32B: Standard compact controller with RS-485 Modbus communications and dual loop output for simultaneous heating/cooling.

1/16 DIN (Standard)

  • Series 16A: Most popular versatile series; features Self-Tune PID, NEMA 4X front panel, and removable electronics for easy replacement.
  • Series 16B: Specifically designed for dual loop control with two separate outputs.
  • Series 16G: Features an orange/green LCD display and high accuracy for industrial monitoring.

1/8 & 1/4 DIN (Large)

  • Series 8B / 8G (1/8 DIN): Vertical mount with dual displays and universal inputs.
  • Series 4B / 4G (1/4 DIN): Large format controllers offering up to 64 ramp/soak actions for complex thermal profiling.

Technical Sheets

Instruction Manual

Catalog Page



Specifications

SERIES 16B TEMPERATURE PROCESS CONTROLLER – Key Specifications

  • Input: Universal input accepts signals from thermocouples, RTDs, DC voltages, or DC current.
  • Control Method: Supports ON/OFF, PID, self-tune, and manual tune control methods.
  • Outputs: Offers two separate outputs with customizable options, including relays (5A @ 250 VAC), voltage pulse (14V), or 4-20 mA current.
  • Display: Features dual 4-digit LED displays to simultaneously show process value (red) and set point value (green).
  • Communication: Built-in RS-485 Modbus® communication protocol is standard on all models for integration with PCs and PLCs.
  • Programming: Supports a stage control program with up to 64 ramp/soak actions for complex process control.
  • Protection: The front panel is rated IP56.
