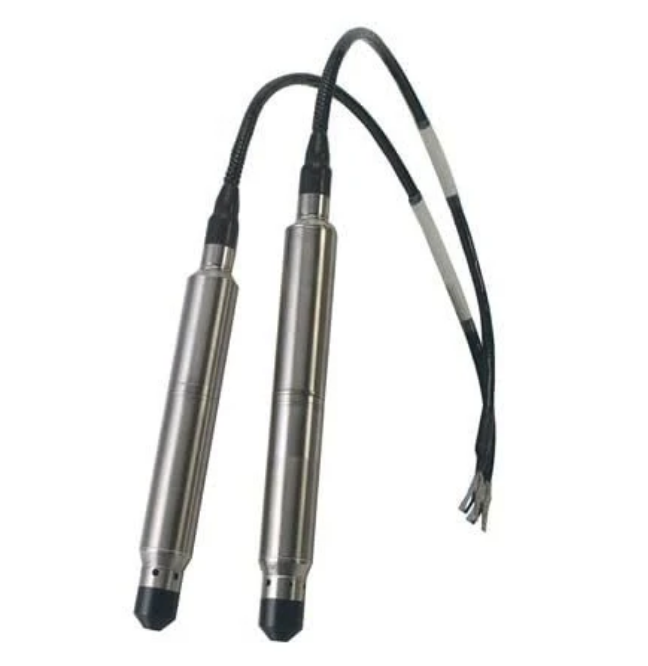

Part of Omega’s high-performance line, the PX709GW utilizes advanced micromachined silicon technology and piezoresistive sensors to deliver exceptional stability and long-term reliability. The sensor is protected by a 316L stainless steel diaphragm and housed in a rugged, sealed chamber filled with silicone oil to transfer pressure accurately. Its unique cable-to-case molding system uses high pressure and temperature to ensure a durable, leak-proof seal rated for depths up to 610 meters (2000 feet). Available with multiple output options (4-20 mA, 0-5 Vdc, 0-10 Vdc, or mV/V) and optional lightning protection, it is a versatile solution for continuous monitoring in pressurized or open-air tanks.

PRODUCT USES:

• Environmental Monitoring: Surface water measurement in rivers, lakes, and flood warning systems.
• Industrial Tank Levels: Precise measurement for storage tanks and process containers compatible with 316 SS.
• Well Water Depth: Monitoring groundwater levels and dewatering installations.
• Wastewater Management: Reliable performance in sewage or industrial waste applications.
• Construction Sites: Ideal for bypass pumping and environmental monitoring on job sites.
