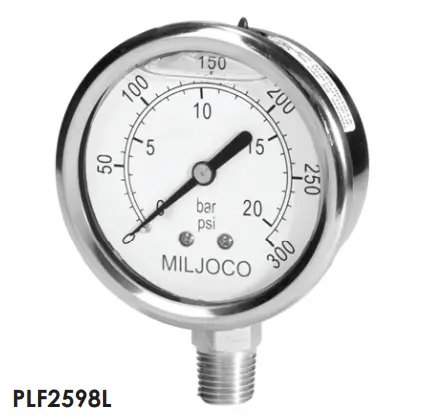

MODEL NUMBER: PLF2598L MILJOLCO
The PLF2598L is a pressure gauge from Miljoco’s PLF series, which is known for its durability in commercial and general service applications. It is a glycerin-filled, analog gauge, with the liquid filling providing protection against the damaging effects of vibration and pulsation, and reducing wear and tear on the movement. This makes it suitable for equipment like pumps, air compressors, and irrigation systems. The gauge is also weatherproof, providing long-lasting performance.
Specifications
MODEL NUMBER: PLF2598L MILJOLCO
CASE: Stainless steel.
RING: Crimped stainless steel.
LENS: Acrylic.
DIAL: Aluminum, white finished with black markings.
POINTER: Aluminum, black, non-adjustable.
MOVEMENT: Brass with precision-milled teeth.
TUBE & SOCKET: Brass.
CONNECTION: See table below.
ACCURACY: ±3-2-3% (ASME B40.100 Grade B).
PROCESS TEMPERATURE: 0 to 140°F (-18 to 60°C).
AMBIENT TEMPERATURE: 0 to 140°F (-18 to 60°C).
Examples of specific models include the:
- PLF2598L04 with a 2.5″ dial size and 0-60 PSI range
- PLF2598L06 with a 2.5″ dial size and 0-160 PSI range
- PLF2598L08 with a 2.5″ dial size and 0-300 PSI range
- PLF2598L15 with a 2.5″ dial size and 0-10000 PSI range
