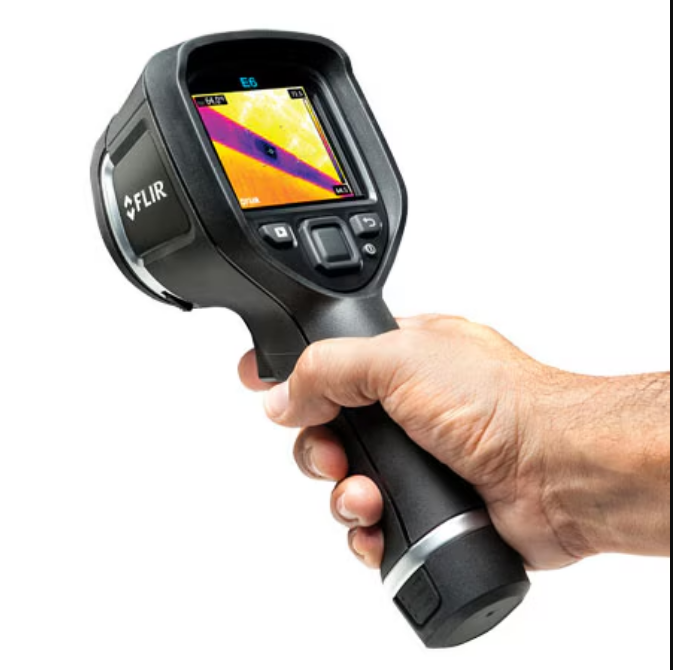

OMEGA OSXL-EX SERIES - COMPACT HANDHELO INFRARED CAMERA
OMEGA OSXL-EX SERIES - COMPACT HANDHELO INFRARED CAMERA

OMEGA OSXL-EX SERIES

A lightweight, entry-level thermal imaging camera series featuring MSX® technology and a focus-free lens for quick, point-and-shoot temperature diagnostics.

Now you can afford the ultimate inspection tool – a thermal imager. Gain the competitive advantage and take care of more customers. Blow them away with dramatic MSX thermal images that clearly reveal problems from sources of energy loss, moisture intrusion and structural issues to overheating electrical and mechanical equipment. This thermal imager line offers the definitive compact infrared camera choices to meet the most demanding applications.

OMEGA OSXL-EX SERIES

The Omega OSXL-EX series offers a cost-effective solution for professionals new to thermography. It provides three viewing modes—thermal, visible, and Multi-Spectral Dynamic Imaging (MSX)—which overlays visible spectrum details onto thermal images for superior clarity. The series is designed for ease of use with a simple button interface and a rugged build that can withstand a 2-meter drop.

PRODUCT USES

  • Electrical/Mechanical: Identifying overheating components, loose connections, and motor wear.
  • Building Inspections: Detecting energy loss, insulation gaps, and moisture intrusion.
  • HVAC: Troubleshooting heat and energy systems and verifying air flow efficiency.
  • Industrial Maintenance: General troubleshooting in factory automation and process control.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

OMEGA OSXL-EX SERIES – KEY SPECIFICATIONS

  • Temperature Range: -20°C to 250°C (-4°F to 482°F).
  • Accuracy: ±2% or ±2°C.
  • Resolution: Varies by model, from the E4 (4,800 pixels) up to the E8 (76,800 pixels).
  • Thermal Sensitivity: <0.15°C.
  • Frame Rate: 9 Hz.
  • Display: 3.0-inch (76 mm) color LCD with 320 x 240 resolution.
  • Battery: Swappable Li-Ion battery with approximately 4-hour life.
  • Durability: IP54-rated against dust and water; 2m drop tested.
