Platinum Series Temperature/Process Strain Controllers

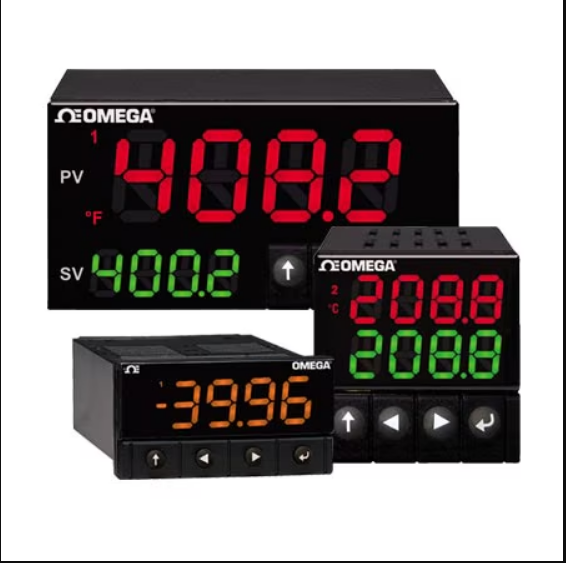

OMEGA CNPT PLATINUM SERIES

The Omega CNPT Series (Platinum Series) consists of high-performance, microprocessor-based PID controllers designed for precise measurement and control of temperature, process, and strain.

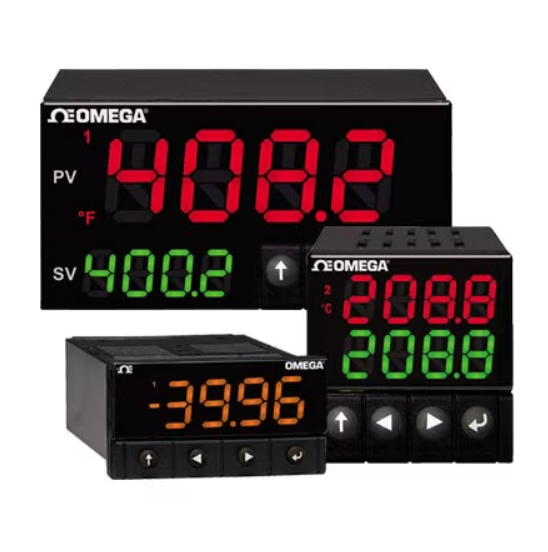

OMEGA CNPT PLATINUM SERIES

Core Features

Universal Inputs: Supports thermocouples, RTDs, thermistors, process voltage/current, and strain/bridge inputs.
High Performance: Delivers a fast sampling rate of 20 samples per second with a 24-bit ADC for high accuracy.
PID Control: Features full autotune PID with Fuzzy Logic adaptive control for stable, responsive management.
Advanced Programming: Capable of storing up to 99 programs with 16 ramp and soak segments each, which can be chained for complex profiles.
Triple Communication: Standard USB port on all models; optional Ethernet and RS232/RS485 Modbus® can all be active simultaneously.

Technical Sheets

Instruction Manual

Specifications

OMEGA CNPT PLATINUM SERIES – Key Specifications

Accuracy: High precision, such as ±0.4°C for Type J thermocouples and 0.03% FS for process inputs.
Display: Programmable 3-color LED display (Green, Amber, Red) that can change color based on alarm status.
Enclosure: NEMA 4X (IP65) rated front bezel for the 1/32 and 1/16 DIN models.
Outputs: Up to 6 programmable outputs including mechanical relays, SSRs, DC pulse, and analog voltage/current.
