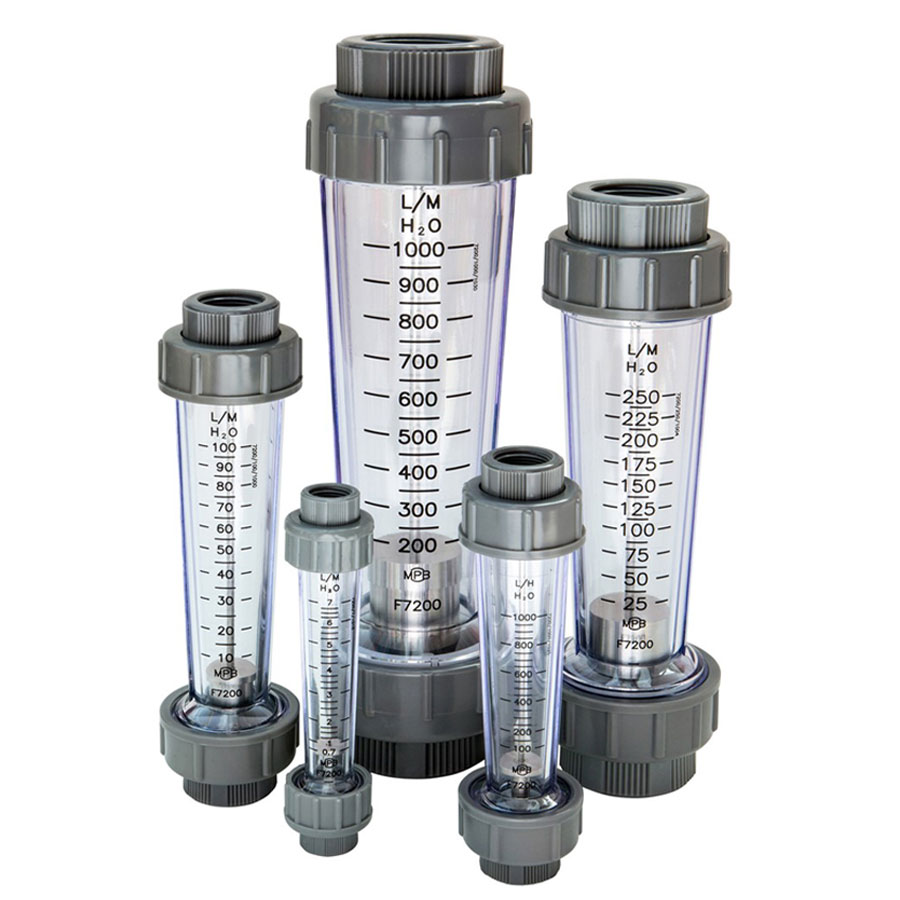

MPB SERIES 7200 VARIABLE AREA FLOWMETER
- Excellent Value, Supplied in 5 lenghs
- High Flow Rates up to 1000 L/MIN H2O (60M3/hr)
- Direct Reading of Instantaneous Flow Rates
- Easy to read scale
- ABS Threaded, or Grey PVC Socket weld connections
- The flow tube assembly can easily be removed from the flowmeter for cleaning
- Easy installation and removal from process line
- Guided floats to give very stable readings
- Materials o construction offer wide compatibility with a range of process mediums
- Good standard working pressure ratings (UP TO 20 bar g)
- Scales suitable for 7 year exposure to direct sunlight
- 10:1 turn down
- Good standard corrosion resistance
Specifications
End Connection: Grey ABS, or Grey PVC Socket Weld
Seals: Viton
Metering Tube: Clear SAN
Float: 316 Stainless steel
Guide Rod: 316 Stainless steel
Scale: Permanently fired ceramic black
Weight: 20mm dia- 120g
32mm dia – 1kg
40mm dia – 2kg
63mm dia – 3kg
75mm dia – 4kg
Maximum Working Temperature: 60°C
Maximum Working Pressure: up to 20 bar g
Accuracy: ± 5% FSD predicted
STANDARD STOCK RANGES
| RANGE (Water @ 20oC) |
SIZE (mm) |
CONNECTIONS |
| L/hr |
L/min |
USGPM |
Overall Length |
Thread BSPP ABS |
Socket Dia (mm) ABS |
Grey PVC Socket Weld |
| 40-400 |
0.7-7 |
– |
200 |
G½” |
20 |
½” nb |
| 50-500 |
1-10 |
– |
200 |
G½ |
20 |
½” nb |
| 100-1000 |
2-20 |
0.4-4 |
230 |
G¾” |
32 |
¾” nb |
| 150-1500 |
2.5-25 |
0.7-7 |
230 |
G¾” |
32 |
¾” nb |
| 250-2500 |
5-50 |
1.0-10 |
230 |
G¾” |
32 |
¾” nb |
| 400-4000 |
6-60 |
1.6-16 |
290 |
G1” |
40 |
1” nb |
| 600-6000 |
10-100 |
2.5-25 |
290 |
G1” |
40 |
1” nb |
| 1-10 M3/H |
16-160 |
4-40 |
350 |
G1½” |
63 |
1½” nb |
| 1.6-16 M3/H |
25-250 |
7-70 |
350 |
G1½” |
63 |
1½” nb |
| 5-25 M3/H |
40-400 |
10-100 |
430 |
G2” |
75 |
2” nb |
| 8-40 M3/H |
130-650 |
30-170 |
430 |
G2” |
75 |
2” nb |
| 12-60 M3/H |
200-1000 |
50-260 |
430 |
G2” |
75 |
2” nb |
