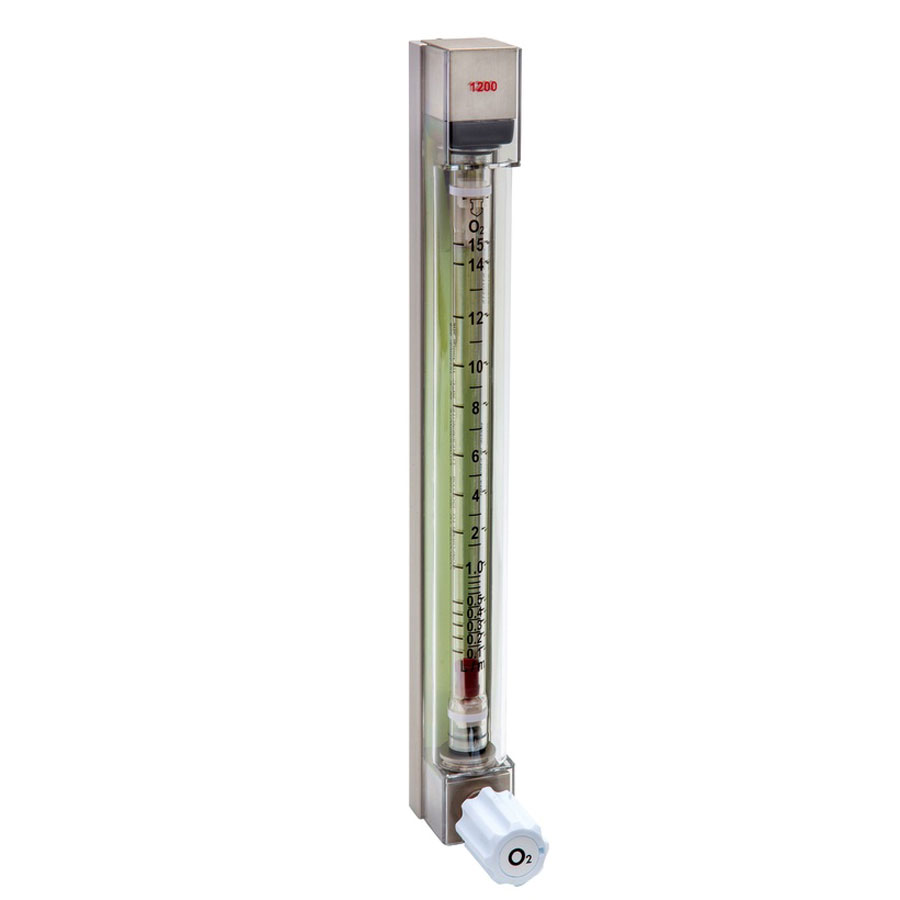

MPB SERIES 1200 VARIABLE AREA FLOWMETER

• This version of the MPB Series 1200BV-ANS/230 Flowmeter is manufactured exclusively to house an anesthetic 230mm standard length flow tube and will give an instantaneous flow rate of the standard anesthetic gases.
• The MPB Series 1200BV-ANS/230 Anesthetic Flowmeter has an overall length of 300mm, with process centers of 275mm.
• This flowmeter can be supplied with either straight through, or rear facing connections (G¼”).
• The anesthetic flow tube supplied with this instrument is fully compliant to ISO 5358 and BS4272.
• Normally the flow tube supplied exhibits dual scale calibration whereby the first third of the flow range is dedicated to 0.1-1 L/min and, for example, 2-10 L/min would be a linear scale for the remainder of the scale length.
• The MPB Series 1200BV-ANS/230 Anesthetic Flowmeter is supplied with an integral flow control valve.
• The flowmeter has a photo luminescent backing to provide a degree of back lighting in the event of power failure.
• The flow tube is fully conductive, both internally and externally, and is compliant to the international standard for human and veterinary anesthesia flow measurement.
• The flow tube utilizes serial numbered floats and flow tubes to guard against incorrect reassembly when cleaning. In addition, the float exhibits a white dot so that the operator can clearly see the rotation.
• The flow tube is supplied complete with colour banding to international standards. We can also supply colour banding to other requirements.
• The flowmeter is fitted with a contact device to earth the flow tube through to the mounting studs and chassis. This is to prevent any static build up.
• In addition to standard anesthetic gases, MPB can supply calibrated flow tubes for xenon, heliox, entinox, nitrox and nitric oxide as typical examples.
• The MPB Series 1200BV-ANS/230 Anesthetic Flowmeter has nickel plated brass end connections, however, stainless steel can be supplied if required at an additional cost.
