HU-225 – Furneco

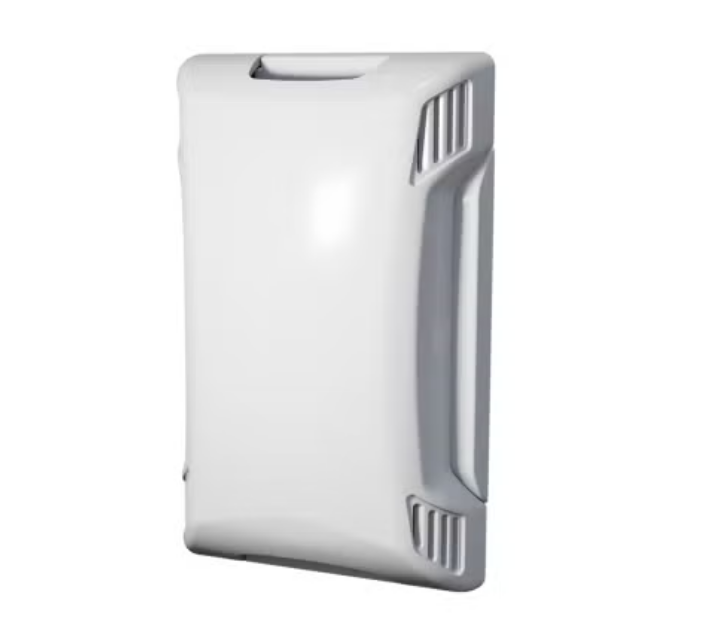

MAMAC HU-225 WALL MOUNT HUMIDITY & TE MPERATURE TRANSMITTER | HVAC SENSOR

The HU-225 incorporates a sophisticated cross-linked bulk polymer capacitive sensing element that is immune to most contaminants and unaffected by condensation. For enhanced durability, the sensor is protected by a proprietary hydrophobic and oleophobic ePTFE filter. It provides a stable, repeatable output with negligible hysteresis and includes non-interacting zero and span trimmers for easy field calibration.

PRODUCT USES:

Commercial HVAC: Monitoring indoor space humidity in office buildings and schools.
Critical Environments: Precision control for cleanrooms, hospitals, and laboratories.
Specialized Storage: Humidity regulation in museums, data centers, and archive facilities.
Industrial Automation: Process control and ESD (anti-static) environmental monitoring.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

MAMAC HU-225 WALL MOUNT HUMIDITY & TE MPERATURE TRANSMITTER | HVAC SENSOR – KEY SPECIFICATIONS

Humidity Range: 0% to 100% RH.
Accuracy Options: NIST traceable ±2% or ±3% RH.
Temperature Range: Compensated for -30°F to 130°F (-35°C to 55°C).
Output Signals: 4-20 mA (2-wire) or field-selectable 0-5 VDC / 0-10 VDC.
Supply Voltage: 12–40 VDC or 12–35 VAC.
Enclosure: Aesthetically appealing ABS plastic wall mount.
Calibration: Non-interacting zero and span trimmers; individually calibrated in environmental chambers.
