SP 40/40H SERIES

Categories: ,
HIKMICRO SP SERIES - HANDHELD THERHIKMICRO SP SERIES - HANDHELD THERMAL IMAGING CAMERAMAL IMAGING CAMERA
HIKMICRO SP SERIES - HANDHELD THERMAL IMAGING CAMERA

HIKMICRO SP SERIES – HANDHELD THERMAL IMAGING CAMERA

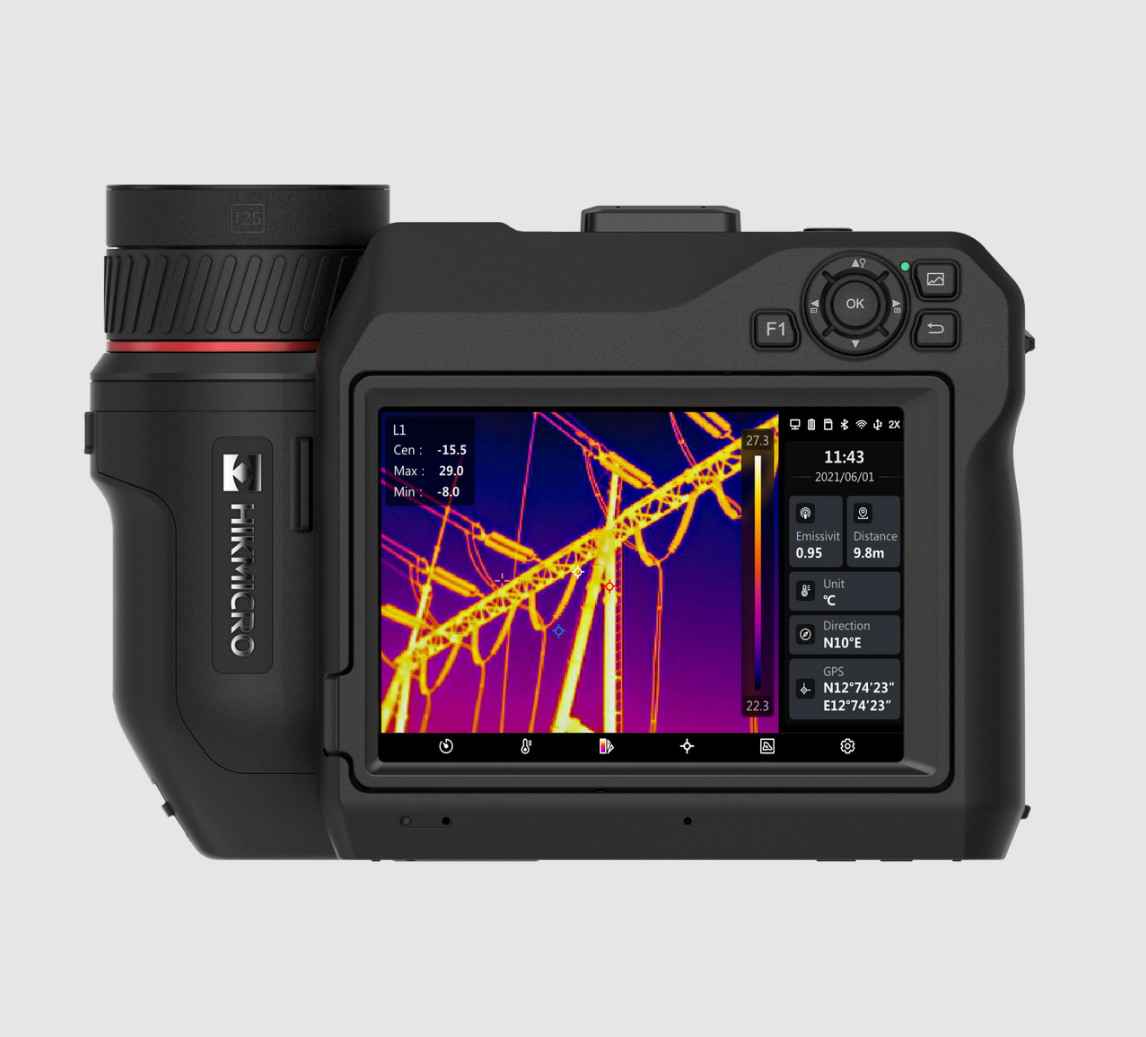

The Hikmicro SP40 series comprises high-performance handheld thermal imaging cameras tailored for industrial inspections, utility maintenance, and the oil and gas sector. This series features two primary configurations based on temperature requirements: the standard SP40 and the high-temperature SP40H.It features a unique 180° rotating lens and a 90° rotating touchscreen, allowing users to easily inspect targets at difficult angles while maintaining a comfortable viewing position.

HIKMICRO SP SERIES – HANDHELD THERMAL IMAGING CAMERA

The Hikmicro SP-Series is a line of high-performance, rugged handheld thermal cameras designed for industrial, commercial, and utility inspections, featuring advanced tech like SuperIR for 4X image enhancement, fast autofocus (1-second), rotating lenses/screens for flexible viewing, and detailed radiometric video analysis for pinpointing equipment issues, insulation gaps, or air leaks. Key models like the SP60/SP60H boast OLED viewfinders for bright conditions, IP54 rating, and are built for demanding outdoor work, offering multiple imaging modes (Thermal, Fusion, PIP, Blending, Visual) and extensive annotation tools for precise reporting. The series continues to lead with flexible ergonomic designs and advanced sensors.

IDEAL FOR:

  • Electrical Inspections: Finding hot spots on electrical components.
  • Building Diagnostics: Detecting insulation gaps and air leaks.
  • Mechanical Inspections: Surveying equipment for malfunctions.

FUNCTIONAL FEATURES

  • Interchangeable Lenses: Compatible with various lenses, including wide-angle (L37), standard (L19), and telephoto (L9, L6), plus specialized macro lenses for PCB inspections.
  • Measurement Tools: Includes an integrated laser distance meter (up to 50m indoors), GPS, and compass for precise geolocation of thermal data.
  • Connectivity: Seamlessly integrates with the HIKMICRO Viewer App and Analyzer software via Wi-Fi or Bluetooth for real-time reporting.
  • Durability: Rated IP54 for water and dust resistance and drop-tested up to 1 meter.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

HIKMICRO SP SERIES – HANDHELD THERMAL IMAGING CAMERA – KEY SPECIFICATIONS

  • Thermal Resolution: 480 × 360 pixels (172,800 pixels).
  • SuperIR Technology: Upscales image clarity to 960 × 720 pixels (691,200 pixels) for detailed reporting.
  • Temperature Range: -20°C to 650°C (-4°F to 1202°F); the SP40H model extends this up to 2200°C.
  • Sensitivity (NETD): < 30 mK (@ 25°C), enabling detection of very subtle temperature variances.
  • Display: 5-inch HD (1280 × 720) LCD touchscreen with auto-brightness.
  • Focus Modes: Supports 5 modes including Laser-Assisted AF, Continuous AF, and Manual Focus.
  • Advanced Tools: Integrated Laser Distance Meter, GPS, compass, and “1-Tap Level & Span” for instant image contrast optimization.
  • Connectivity: Wi-Fi, Bluetooth, USB Type-C, and HDMI-D for data transfer and live streaming.
