G2 SERIES TURBINE FLOW METER

Categories: Flow, Flow Transmitters

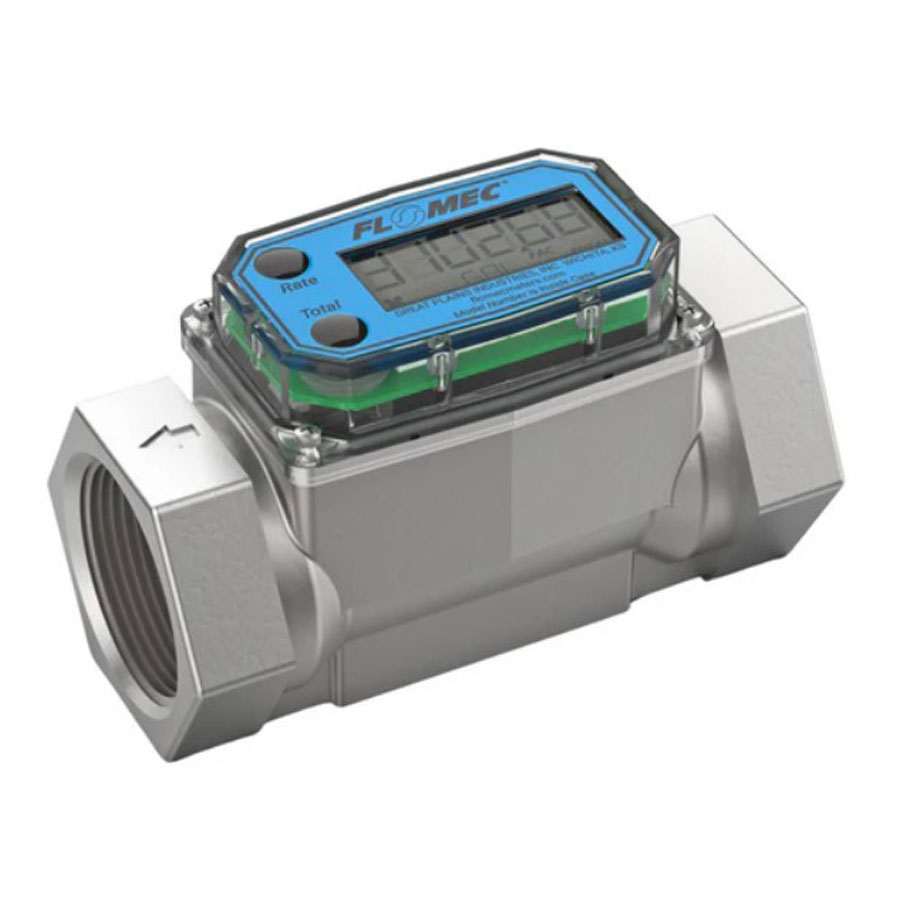

FLOWMEC G2 Series Turbine Meter

G2 SERIES TURBINE FLOW METER

The FLOMEC® G2 Series Stainless Steel Precision Turbine Meters are designed for simple installation and suitability with most water and chemical applications.

The robust design and versatility of the G2 flow meter make it the perfect solution for multiple flow measurement applications across different liquids, including water, fuels, solvents, and petroleum-based chemicals.

G2 SERIES TURBINE FLOW METER

The modular nature of the G2 Series allows for a variety of display, output, and installation options.

Meter is designed for thin fluids < 100 cp.
Modular design allows for use with Output Modules, Sensors and Remote Transmitters.
2 Totals (Batch = Resettable, Cumulative = Non resettable); Rate of Flow, Factory calibrated in gallons or liters. Field calibratable. Includes nonvolatile totals.
High accuracy meter
Internal parts are simple to replace for easy maintenance.
AAA Alkaline battery life: 2 years

Technical Sheets

Instruction Manual
Catalog Page

Specifications

Technology: Turbine
Flow Range: 3.8 – 760 L/min (Size Dependent)
Accuracy: ± 1.5% – 0.75% (Size Dependent)
Repeatability: ± 0.3%
Pressure Rating: 103 bar (1500 psi)
Operating Temperature Range: -18° C – 54° C
