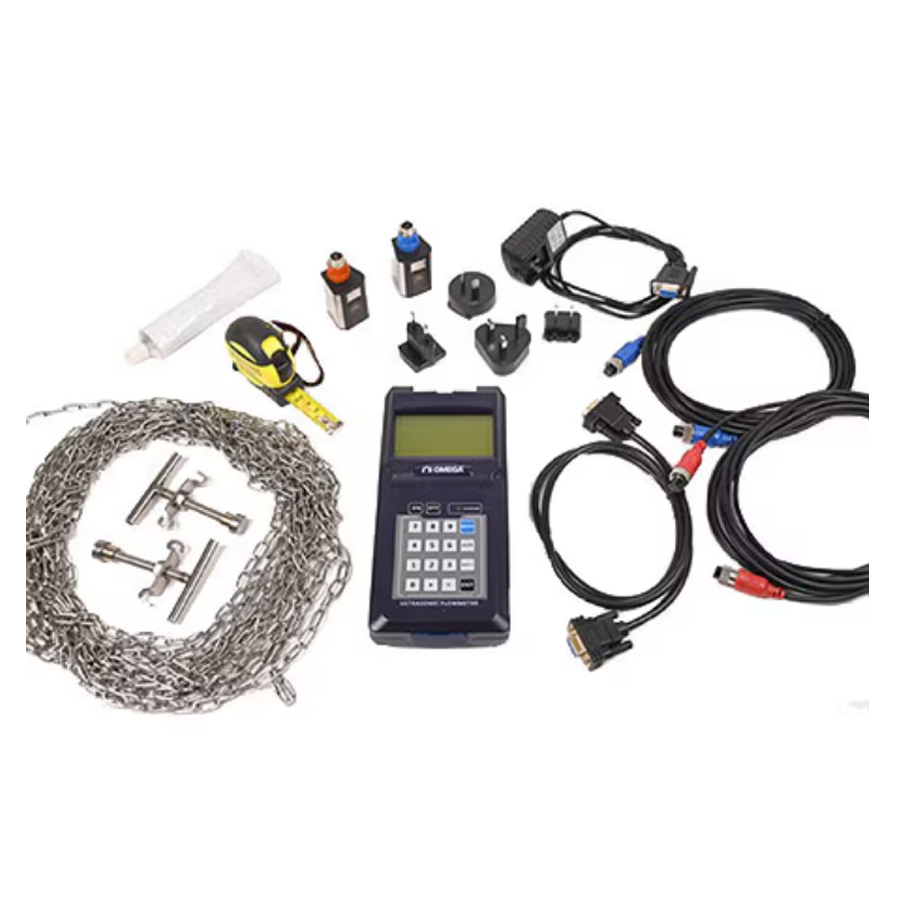

FTD-25 PORTABLE DIGITAL ULTRASONIC FLOW METER KIT

FTD-25 PORTABLE DIGITAL ULTRASONIC FLOW METER KIT

Non-invasive measurement: The clamp-on transducers attach to the outside of a pipe, eliminating the need for process shutdown, pressure loss, or contamination.
Broad application range: It can be used for a wide variety of liquids, including clean water, sea water, wastewater, chemicals, oils, and more.
Wide pipe and temperature range: The standard kit is for pipes from 0.75″ to 4″ (DN15 to DN100), but optional transducers can expand the range to 15mm up to 6000mm (0.6″ to 236″), accommodating most pipe sizes. It also supports different temperature ranges.
High accuracy: The meter provides high-accuracy readings with a precision of ±1% of the reading at rates above 0.2 m/s.
Built-in data logging: An internal data logger can store over 2,000 rows of data, allowing for measurement over time.
Portable and durable: It is powered by rechargeable NiMH batteries that last over 10 hours and is housed in a portable, IP65-rated case.
LCD display: The built-in display shows instant flow, total flow, and fluid velocity.
Configurable units: Users can configure the flow meter to display different rate units, including cubic meters, liters, gallons, and more.

Product Specifications

Accuracy± 1 %
Accuracy Detail±1% of reading at rates >(0.2m/s) 0.6 ft/s
Battery Size and TypeNiMh AAA
Cable Length5 m
Data InterfaceRS232
Display Language English, Chinese
Display Note4 x 16 English letters, 4 x 8 Chinese characters
Display Type LCD
Enclosure RatingsIP65
Materials ABS
Measurement Type Transit Time
Operating Temperature, Max60 °C
Operating Temperature, Min-20 °C
Pipe Size, Max4 in
Pipe Size, Min0.75 in
Process Temperature, Max90 °C
Process Temperature, Min0 °C
Relative Humidity85% RH
Repeatability0.002
Response Time0 to 999 sec
Supply Power Note3 “AAA” NiMH built-in batteries (included) with 100 to 240 VAC charger, fully charged lasts over 10 hrs
Supply Power Type Battery
Transducer Type Clamp-on
Velocity, Max32 m/s
Velocity, Min-32 m/s

Technical Sheets

Instruction Manual

Catalog Page

Specifications

Brand
Accuracy	± 1 %
Accuracy Detail	±1% of reading at rates >(0.2m/s) 0.6 ft/s
Battery Size and Type	NiMh AAA
Cable Length	5 m
Data Interface	RS232
Display Language	English, Chinese
Display Note	4 x 16 English letters, 4 x 8 Chinese characters
Display Type	LCD
Enclosure Ratings	IP65
Form factor	Pipe Remote mount
Materials	ABS
Measurement Type	Transit Time
Operating Temperature, Max	60 °C
Operating Temperature, Min	-20 °C
Pipe Size, Max	4 in
Pipe Size, Min	0.75 in
Process Temperature, Max	90 °C
Process Temperature, Min	0 °C
Relative Humidity	85% RH
Repeatability	0.002
Response Time	0 to 999 sec
Supply Power Note	3 “AAA” NiMH built-in batteries (included) with 100 to 240 VAC charger, fully charged lasts over 10 hrs
Supply Power Type	Battery
Transducer Type	Clamp-on
Velocity, Max	32 m/s
Velocity, Min	-32 m/s
