FLOMEC® QS200 SERIES

FLOMEC® QS200 SERIES

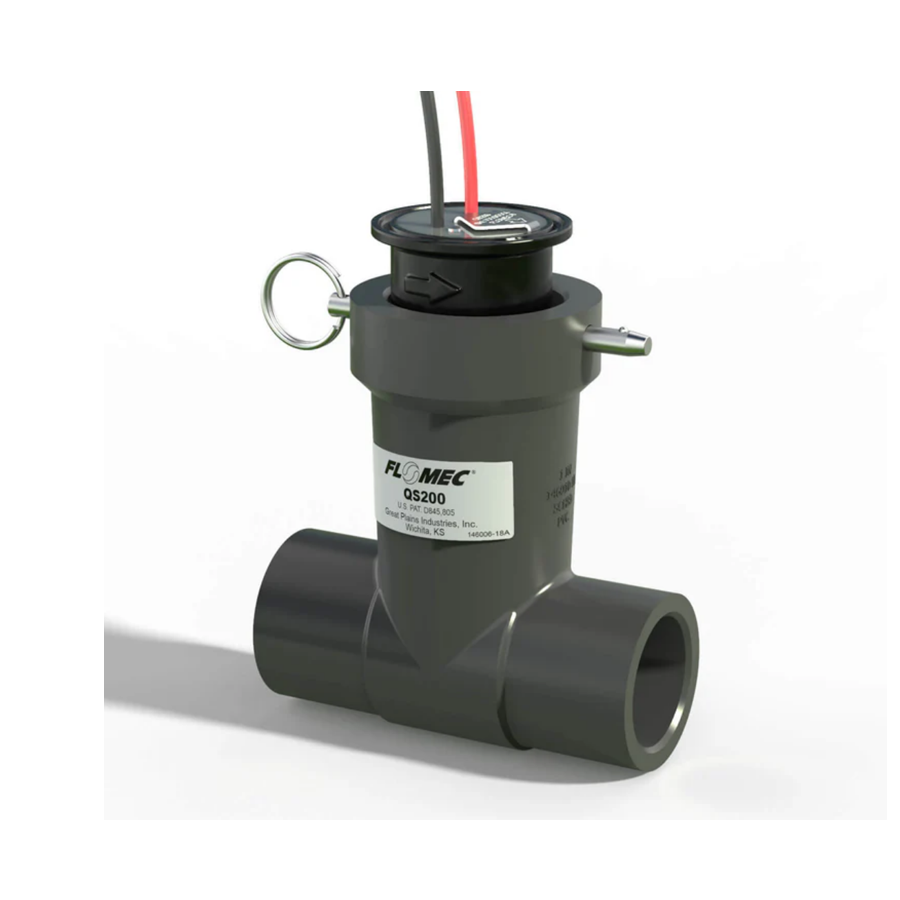

The FLOMEC QS200 ultrasonic flow sensor with Schedule 80 PVC tee is designed for above and below grade applications such as turf, irrigation, municipal and underground water monitoring.

QS200 monitors flow rates between 0.1 to 15fps (0.03 to 4.6 m/s) and works in applications below 140° F (60° C). In addition to its low-flow capabilities, ultrasonic technology means no moving parts to wear out or fail when winterizing systems using compressed air – making it a great replacement of existing paddlewheel flow sensors. Schedule 80 PVC tee fits five pipe sizes up to 4 inches. QS200 sensors are supplied with two single conductors, 18 AWG solid copper wire leads that are 36 inches (914.4 mm) in length with UL Style 116666 direct burial insulation.

FLOMEC® QS200 SERIES

  • Unmatched Durability: No mechanical parts means this ultrasonic water meter needs zero maintenance for winterization and has no flow restrictions, making it nearly indestructible
  • Exclusive Ultrasonic Technology: Most accurate water flow sensor in the industry with an unprecedented accuracy +/-2% of reading
  • Flexible Metering Solutions: Fits great with turf and landscape irrigation systems, golf course, agriculture irrigation, drip irrigation and commercial agriculture applications. Has the best low flow capabilities in the turf irrigation market, detecting flows as low as 0.1 fps.
  • Easy Installation and Operation: Power and signal LED lets you know the meter is functioning properly. Installed in Sch 40 and Sch 80 above or below grade installations for maximum versatility.
  • Conventional Irrigation: Two-wire connection (for power and pulse)

Technical Sheets

Instruction Manual

Catalog Page

Specifications

GPI QS200  – Product Specifications

Flow Range 0.1 to 15 fps (0.03 to 4.6 m/s)
Accuracy (% of Reading) +/- 2%
Technology Ultrasonic
Pressure Rating 203 PSI @ 70°F (14.0 bar @ 21°C)
Operating Temperature +32°F to +140°F (0°C to +60°C)
Connection Type/Size Socket, 1-inch
Pipe Size 1-inch
Meter Housing Material Schedule 80 PVC
Wetted Materials EPDM | PEI (Ultem 1000) | PPS (Ryton® R-4)
What’s in the Box Ultrasonic Insert with O-Rings, PVC Tee, Owner’s Manual
Warranty 2-yr meter warranty
UPC 031401007596
Approvals CE, IP68
