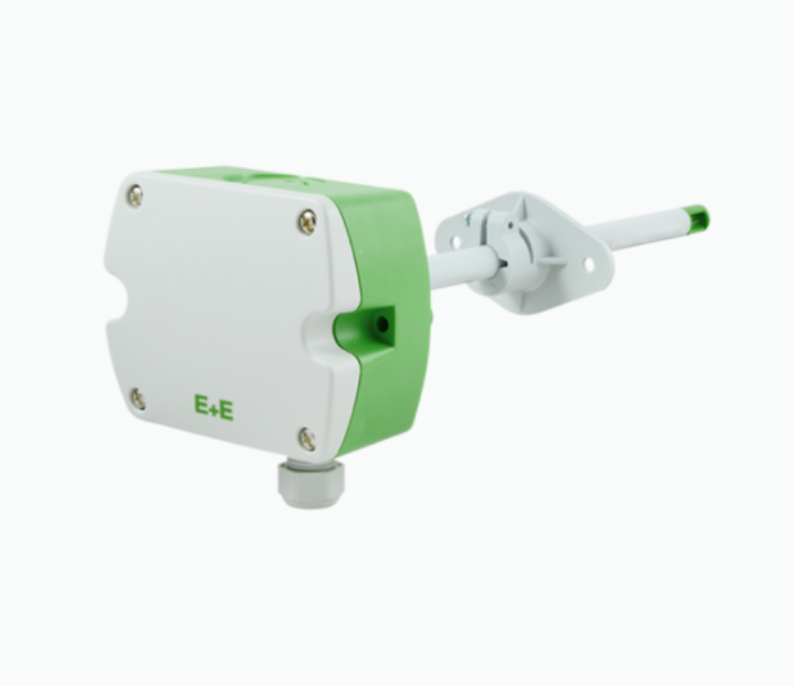

E+E ELEKTRONIC EE650 AIR VELOCITY TRANSMITTER | HVAC AIRFLOW SENSOR

The EE650 features the innovative VTQ sensing element, manufactured with state-of-the-art thin-film technology. This design ensures exceptional long-term stability and high resistance to pollution, which is critical for maintaining accuracy in dusty or contaminated duct environments. The transmitter offers high flexibility with user-selectable measuring ranges and output signals (analogue or digital) configurable via onboard jumpers or a digital interface.

PRODUCT USES:

Building Automation: Reliable airflow monitoring for energy-efficient ventilation.
HVAC Control: Managing air handling units, ducts, and VAV systems.
Clean Room Monitoring: Ensuring laminar flow control at low velocities.
Process Control: General industrial ventilation and pharmaceutical applications.

Technical Sheets

Instruction Manual

Catalog Page

Specifications

E+E ELEKTRONIC EE650 AIR VELOCITY TRANSMITTER | HVAC AIRFLOW SENSOR – KEY SPECIFICATIONS

Measuring Ranges: User-selectable: 0–10/15/20 m/s (0–2000/3000/4000 ft/min).
Output Signals: Analogue (4–20 mA or 0–10 V) or Digital (Modbus RTU / BACnet MS/TP).
Accuracy: ±(0.2 m/s + 3% of measured value) at 20°C.
Power Supply: 24 V AC/DC ± 20%.
Enclosure: IP65 / NEMA 4 rated polycarbonate housing.
Probe Options: Available as a duct mount or with a remote sensor probe (up to 10m cable).
