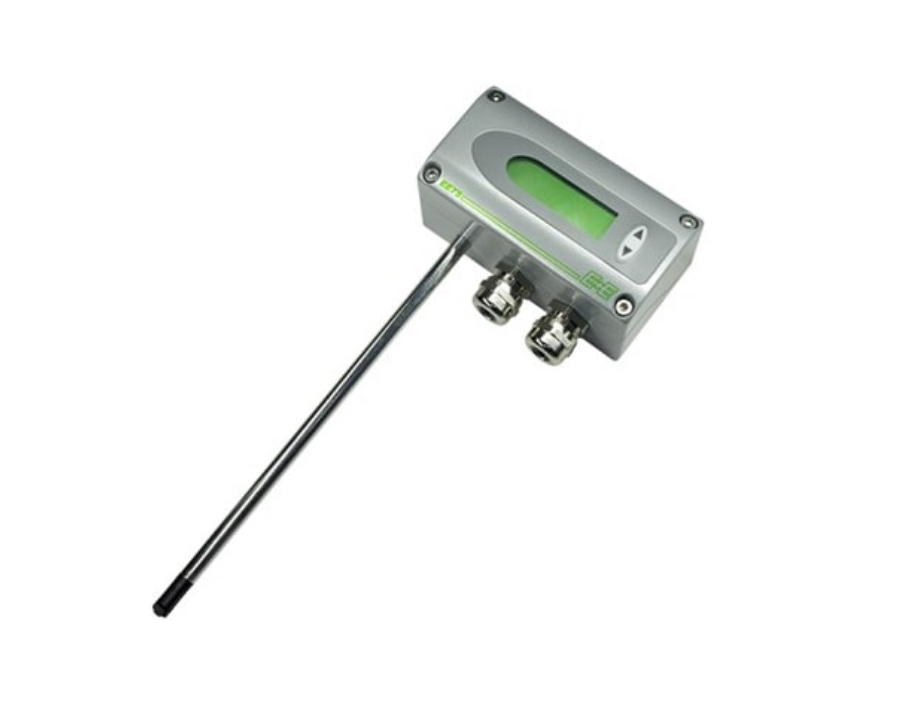

E+E Elektronik EE75 High-Accuracy Industrial Air Velocity Transmitter

E+E ELEKTRONIK EE75 HIGH-ACCURACY INDUSTRIAL AIR VELOCITY TRANSMITTER

The EE75 transmitter provides precise air/gas velocity and temperature measurement up to 40 m/s and 120°C. Ideal for cleanrooms, exhaust hoods, and harsh industrial processes.

It is an industrial-grade air and gas velocity transmitter designed for maximum precision in challenging environments, featuring advanced temperature compensation and high resistance to contamination.

A high-precision air velocity transmitter optimized for measuring very low airflows down to 0.15 m/s (30 ft/min) in sensitive environments.





E+E ELEKTRONIK EE75 HIGH-ACCURACY INDUSTRIAL AIR VELOCITY TRANSMITTER

Engineered for demanding industrial processes, the EE75 utilizes a thin-film hot-film anemometer sensing element to provide exceptional long-term stability. It measures air velocity, temperature, and calculates volumetric flow rate even in harsh conditions with pressures up to 10 bar (145 psi) and temperatures up to 120°C (248°F). Its innovative probe design minimizes angular dependency, ensuring reliable readings in turbulent duct environments.

PRODUCT USES:

  • Industrial Ventilation: Monitoring incoming and outgoing air for energy management.
  • Cleanrooms: Filter monitoring and laminar flow control.
  • Pharmaceutical/BioTech: Exhaust hoods, glove boxes, and sterile environments.
  • Process Control: Drying processes, combustion air measurement, and compressed air monitoring.



Technical Sheets

Instruction Manual

Catalog Page

Specifications

E+E ELEKTRONIK EE75 HIGH-ACCURACY INDUSTRIAL AIR VELOCITY TRANSMITTER – KEY SPECIFICATIONS

  • Measuring Range (Velocity): Configurable 0–2 m/s, 0–10 m/s, or 0–40 m/s (up to 8000 ft/min).
  • Measuring Range (Temperature): -40 to 120 °C (-40 to 248 °F).
  • Accuracy: ±(0.06 m/s + 2% of reading) for the 2 m/s range.
  • Output Signals: Dual analog outputs (0–10 V or 4–20 mA).
  • Pressure Rating: Pressure-tight versions available up to 10 bar (145 psi).
  • Enclosure: IP65 / NEMA 4 rated die-cast aluminum.
  • Power Supply: 24 V AC/DC ± 20%.
