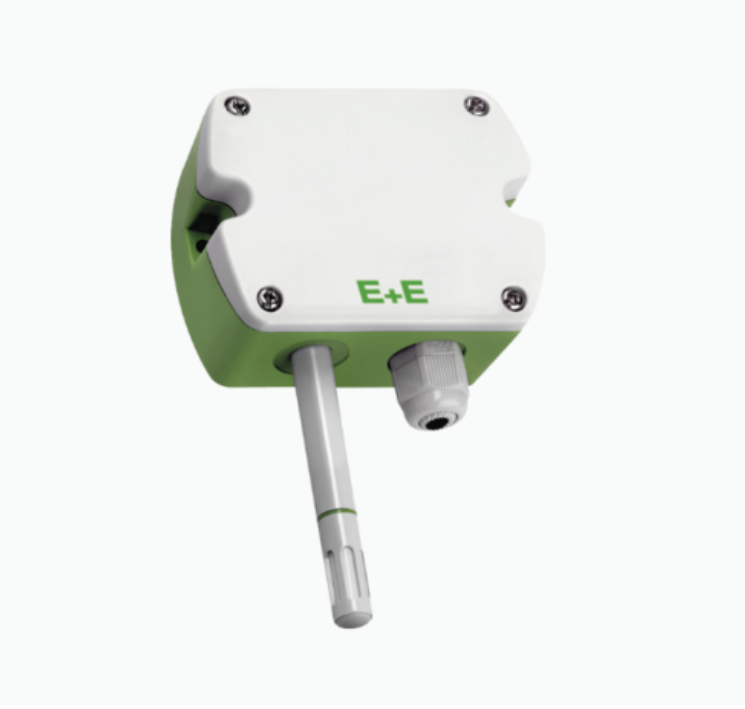

E+E Elektronik EE160 Humidity and Temperature Transmitter | HVAC Sensor

E+E ELEKTRONIK EE160 HUMIDITY TEMPERATURE TRANSMITTER | HVAC SENSOR

A reliable and accurate humidity and temperature transmitter designed for building management, available in wall or duct mount versions.

The EE160 by E+E Elektronik is a high-precision, cost-effective transmitter specifically optimized for relative humidity and temperature measurement in modern HVAC and Building Automation systems.

E+E ELEKTRONIK EE160 HUMIDITY TEMPERATURE TRANSMITTER | HVAC SENSOR

The EE160 employs the advanced HCT01 sensor element and features encapsulated electronics within the probe. It is enhanced with an E+E proprietary coating on the sensing element, ensuring exceptional long-term stability and protection against pollution, condensation, and aggressive environments. The transmitter offers high flexibility with user-configurable analog outputs (voltage/current) or a digital Modbus RTU/BACnet interface.

PRODUCT USES:

  • HVAC Systems: Precision control of heating, ventilation, and air conditioning.
  • Building Automation: Core sensor for residential and commercial management systems.
  • Storage Rooms: Environmental monitoring for warehouses and utility rooms.
  • Demanding Environments: Suitable for light industry and applications with potential for pollution or condensation.



Technical Sheets

Instruction Manual

Catalog Page

Specifications

E+E ELEKTRONIK EE160 HUMIDITY TEMPERATURE TRANSMITTER | HVAC SENSOR – KEY SPECIFICATIONS

  • Humidity Range: 0% to 100% RH (working range 10–95% RH).
  • RH Accuracy: ±2.5% RH at 20°C (68°F).
  • Temperature Range: -40 to 60°C (-40 to 140°F).
  • Temp Accuracy: ±0.3°C (±0.54°F).
  • Outputs: Dual Analog (0-10V or 4-20mA) or Digital (RS485 Modbus RTU / BACnet MS/TP).
  • Protection Rating: IP65 / NEMA 4X rated polycarbonate housing.
  • Power Supply: 15–35V DC or 24V AC ±20%.
