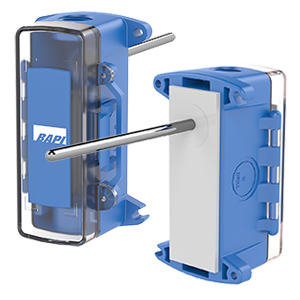

BAPI DUCT TEMPERTURE TRANSMITTER WITH A BAPI-BOX CROSSOVER
BAPI’s Duct Temperature Transmitters have a field adjustable output of 4 to 20 mA or 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC over a selected temperature range. They feature closed cell foam to seal the probe insertion hole, mounting tabs for easy installation and etched Teflon lead wires and double encapsulated sensors to create a watertight package. They come in probe lengths from 4” to 18” or custom lengths. Duct Temperature Transmitters come with a BAPI-Box, BAPI-Box 2 or a BAPI-Box Crossover enclosure with green power LED.
- 4-20mA, 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC Output
- Probe Lengths: 4”, 6″, 8”, 12”, 18″ or Custom Length
Specifications
BAPI DUCT TEMPERTURE TRANSMITTER – KEY SPECIFICATIONS
- Outputs: User-selectable 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, or 2-10 VDC.
- Probe Lengths: Standard sizes of 4”, 6”, 8”, 12”, and 18”; custom lengths are available upon request.
- Accuracy: High-precision system accuracy of ±0.065% of span (for T1K models).
Operating Ranges: Common factory-calibrated ranges include 0 to 100°F, 32 to 212°F, and 0 to 100°C.
- Enclosures: Available in BAPI-Box, BAPI-Box 2 (IP66/NEMA 4X), or BAPI-Box Crossover styles.
- Durability: Features etched Teflon lead wires and a double-encapsulated sensor to ensure a watertight package capable of handling high humidity and condensation.
Supply
- Voltage: Operates on 12 to 40 VDC.
