CLAMP-ON ULTRASONIC FLOW METER - TRANSIT TIME

CLAMP-ON ULTRASONIC FLOW METER – TRANSIT TIME

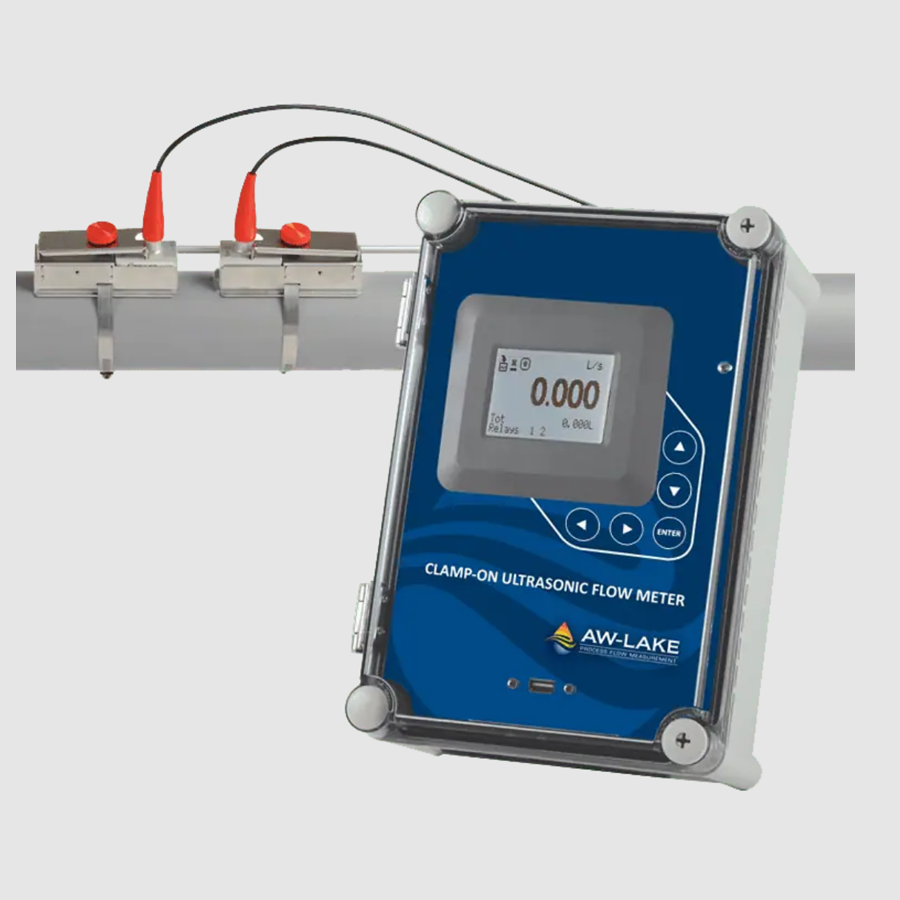

Using the Transit Time measurement principle, the CUTT Clamp-On Ultrasonic Flow Meter fastens on the outside of vertical or horizontal pipes ranging in size from ½” through 48”.  Housed in a water- and dust-tight NEMA4X polycarbonate enclosure, the Clamp-On Ultrasonic Flow Meters are compatible with a range of metal and plastic pipe materials and “corrosive liquids” that would damage standard flow meters.  As a result, the non-intrusive, clamp-on ultrasonic sensors feature enhanced flow measurement with no pressure drop in a range of applications such as food or chemical processing plants, oil refineries, and more.

CLAMP-ON ULTRASONIC FLOW METER – TRANSIT TIME

Introducing the AW-Lake Ultrasonic Flow Meter family—a cutting edge solution designed to overcome the challenges posed by “difficult liquids” that can wreak havoc on conventional flow meters. These meters excel in applications involving chemicals, viscous fluids, and abrasives, providing unparalleled reliability and accuracy.
Our non-intrusive, clamp-on ultrasonic meters are engineered to easily be installed on the outside of pipes with internal diameters ranging from 1/2″ to a substantial 48″, making them incredibly versatile for various industries. These meters are housed within robust NEMA 4X polycarbonate enclosures, ensuring their durability in water and dust-prone environments, and delivering enhanced performance across a wide spectrum of applications.
Whether it’s for cooling water, condenser water, or water/glycol solutions, our water inline ultrasonic meters are specifically crafted to meet your needs in pipes ranging from 1/2″ to 2-1/2″. Discover the benefits of precise, non-invasive flow measurement that safeguards your processes and enhances efficiency.

Key Features:

  • Measurement Principle:  Transit time ultrasonic
  • Line Sizes:  1/2 inch to 48 inch
  • Temperature Rating: Transducer: -40°F to 300°F; Electronics: -5°F to 140°F
  • Outputs:  4-20mA/0-5V Analog standard; Modbus RTU or HART optional

Technical Sheets

Instruction Manual

Catalog Page

Specifications

CLAMP-ON ULTRASONIC FLOW METER – TRANSIT TIME
Measuring Accuracy:

±1.0% of reading from 1.5 to 40 ft/sec (0.5 to 12.0 m/sec) and ±0.015 ft/sec (±0.0046 m/sec) for velocity below 1.5 ft/sec (0.46 m/sec).

Repeatability & Linearity:

±0.25%

Flow Measuring Range:

±0.07-40 ft/sec (±0.02-12 m/sec)

Pipe Diameter / Sizes:

SE16A:  0.5” to 1.5” (15 mm to 40 mm)
SE16B:  2” to 10” (50 mm to 250 mm)
SE16C:  12” to 48” (300 mm to 1200 mm)

Pipe Materials:

Any metal or plastic sonic conducting materials, including carbon steel, stainless steel, ductile iron, concrete lined ductile iron, cast iron, PVC, HDPE, PVDF, fiberglass, copper, brass, aluminum, and pipes with bonded liners, including epoxy, rubber, and PTFE.

Operating Frequency:

SE16A:  2.56 MHz
SE16B:  1.28 MHz
SE16C:  640 kHz

Operating Temperature Range:

Transducer:
-40°F to 300°F (-40 to 150°C)

Electronics:
-5°F to 140°F (-20 to 60°C)

Power Input:

100-240VAC 50-60Hz, 10 VA max.
Optional: 9-32VDC, 10 Watts max.

Analog Output:

Isolated 4-20mA/0-5V, 1000 ohm load max., programmable offset

Control Relays:

2 Relays, form C dry contacts rated 5 amp SPDT; programmable flow alarm an/or flow proportional pulse
Optional: 4 additional (6 total), rated 5 amp SPDT

Safety Rating:

CE Certification

Approximate Shipping Weight:

12 lbs. (5.5kg)
