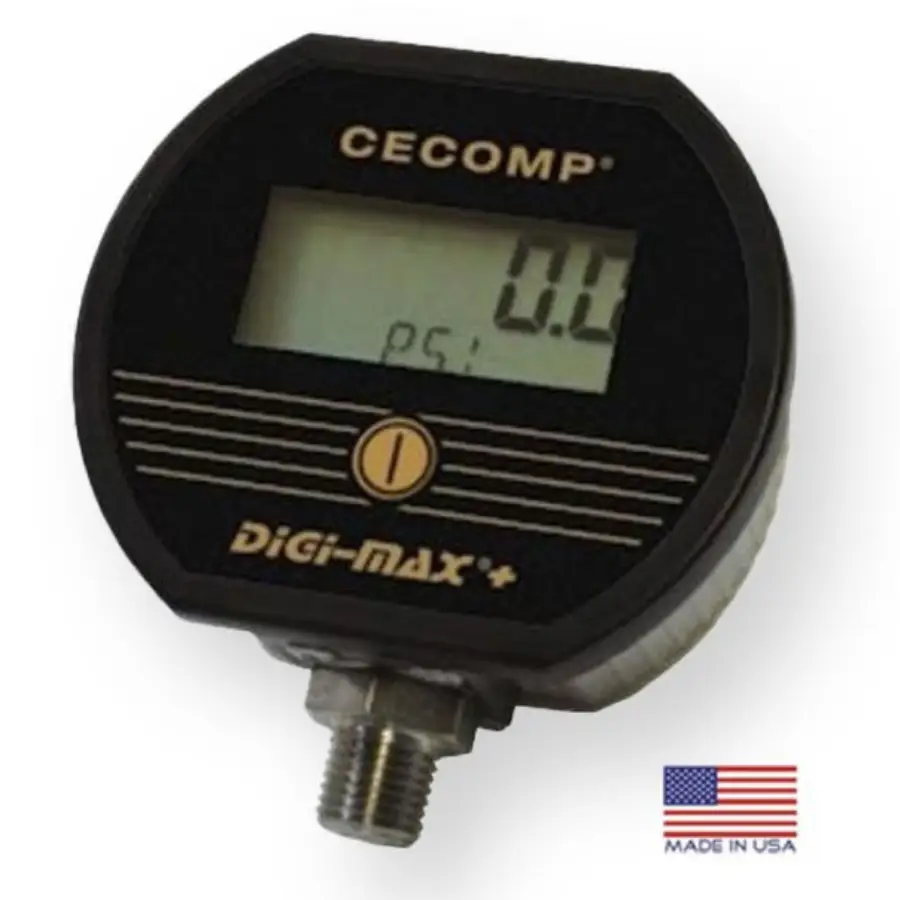

CECOMP F16B – 200.0 PSI DIGITIAL PRESSURE GAUGE 0.25% ACCURACY-MIN/MAX MEMORY
FEATURES
Field duty or calibration: Suitable for both portable pressure calibration and permanent installation in industrial settings.
Vibration resistance: Its solid-state design helps provide a steady reading in high-vibration applications, a key advantage over analog gauges.
Unit selection: A microprocessor allows users to change engineering units, a feature not available on all basic digital gauges.
Media compatibility: Compatible with most liquids and gases, thanks to the 316 stainless steel wetted parts.
Zero function: On gauge reference models, the display can be zeroed at power-up. This function is not used for absolute reference gauges.
Durability: The F16B is built to withstand overpressure spikes and general use better than many analog gauges. A protective rubber boot is an available option.
Specifications
CECOMP F16B – 200.0 PSI DIGITIAL PRESSURE GAUGE 0.25% ACCURACY-MIN/MAX MEMORY
Accuracy: ±0.25% FS ±1 least significant digit (at 21°C). High-accuracy (HA) options of ±0.1% FS are also available on certain models.
Sensor: 316 stainless steel.
Pressure Range: 0 to 200 PSIG for this specific model. Cecomp offers other F16B models with different pressure ranges, including vacuum.
Overpressure: Rated for 2x the specified pressure.
Burst Pressure: 4x the specified pressure (minimum).
Display: 4-digit LCD with a 0.5″ character height. An optional backlight is available for use in low-light conditions.
Updates: The display updates at a nominal rate of three times per second.
Min/Max Memory: Stores and displays minimum and maximum pressure readings. The recorded values can be cleared via a front button.
Controls: The front-panel button controls power, zeroing, and the min/max functions. Internal buttons are used to select engineering units and set the auto-shutoff time.
Power: Two AA alkaline batteries, with an approximate lifespan of 2000 hours. A low-battery indicator is included.
Auto Shutoff: An internal button allows for the selection of an auto-shutoff time, such as the 10-minute setting on some models. The auto-shutoff can be disabled.
Process Connection: Standard 1/4″ NPT male fitting.
Enclosure: Extruded aluminum case with an epoxy powder coat and a polycarbonate cover. The enclosure is splashproof, and a moisture-resistant coated circuit board is an option.
Dimensions: 3.38″ W x 2.88″ H x 1.65″ D.
Weight: 9 ounces.
