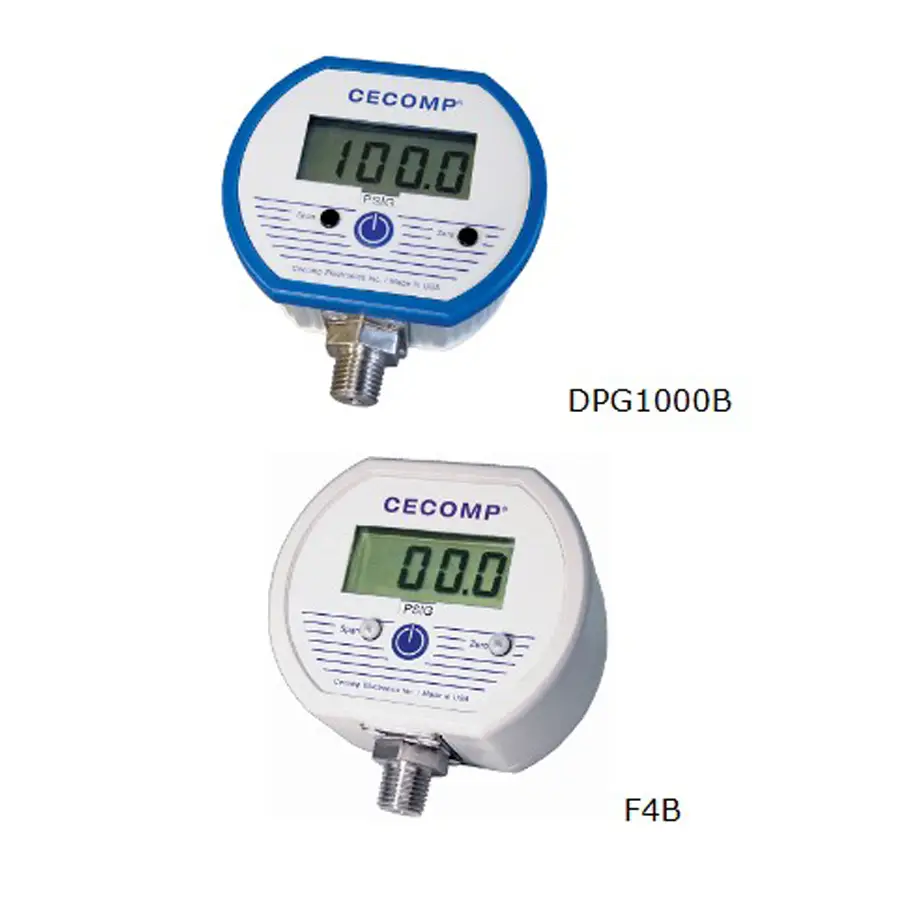

CECOMP® DPG100B / 4B – BATTERY POWERED DIGITAL PRESSURE GAUGES
This series is ideal for standard portable or fixed applications where a higher level of environmental protection is not required.
DPG100B SERIES CECOMP
KEY FEATURES:
Accuracy: ±0.25% of full scale.
Housing: Extruded aluminum case with an epoxy powder coat.
Display: 3.5-digit LCD.
Control: A single button for simple on/off operation.
Battery: Powered by two AA batteries, with a long life of approximately 2500 hours without a backlight.
DPG4B SERIES
This series is built for more demanding applications requiring greater durability and environmental resistance.
KEY FEATURES:
Accuracy: ±0.25% of full scale.
Housing: NEMA 4X rated ABS/polycarbonate case, designed to be splashproof.
Display: Features a 4-digit LCD on the top line and a 5-character alphanumeric LCD on the lower line.
Memory: Includes four user-settable memory locations for storing readings.
Control: A three-button keypad controls power, zeroing, and cycling through memory functions.
Battery: Powered by two AA batteries, with a battery life of up to 2000 hours. The battery life is lower when the backlight is enabled.
Media Compatibility: Gases and liquids compatible with 316 SS.
Specifications
DPG100B SERIES CECOMP
SPECIFICATIONS
CECOMP DPG100B specifications The DPG100B is a more straightforward, rugged industrial pressure gauge.
Accuracy: (pm 0.25%) of full scale, (pm 1) least significant digit.
Wetted Parts: 316L stainless steel for compatibility with a wide range of liquids and gases.
Sensor: 316 stainless steel.
Pressure Range: Various models are available for different pressure ranges, such as the 0-100 PSI model.
Overpressure: Rated for (2times ) the specified pressure.
Burst Pressure: Rated for (4times ) the specified pressure, minimum.
Display: 3.5-digit LCD with 0.5″ character height.
Controls: Single pushbutton for on/off operation.
Power: Two AA alkaline batteries, providing up to 2500 hours of typical use.
Auto Shutoff: Some models have a 5-minute auto shutoff, while others require manual shutoff.
Process Connection: 1/4″ NPT male fitting.
Housing: Extruded aluminum case with an epoxy powder coat.
Weight: Approximately 9 ounces.Dimensions: 3.38″ W x 2.88″ H x 1.65″ D.Temperature Range (Operating): -40 to 185°F (-40 to 85°C).Temperature Range (Compensated): 32 to 158°F (0 to 70°C).
CECOMP DPG4B SPECIFICATIONS
The DPG4B series offers more advanced features and enhanced environmental protection
- Accuracy:
±0.25%plus or minus 0.25 %
±0.25%
of full scale.
- Wetted Parts: 316 stainless steel.
- Housing: NEMA 4X rated ABS/polycarbonate case, making it splashproof.
Display:
- Top line: 4-digit LCD (0.5″ H).
- Lower line: 5-character alphanumeric LCD (0.25″ H).
- Backlight option available.
Memory: Four user-settable memory locations for storing readings.
Controls: Three-button keypad for zero, memory, and on/off functions.
Power: Two AA batteries, providing up to 2000 hours of use (with backlight disabled).
Auto Shutoff: Selectable auto-shutoff times, configurable from 1 minute to 8 hours.
Media Compatibility: Gases and liquids compatible with 316 SS.
