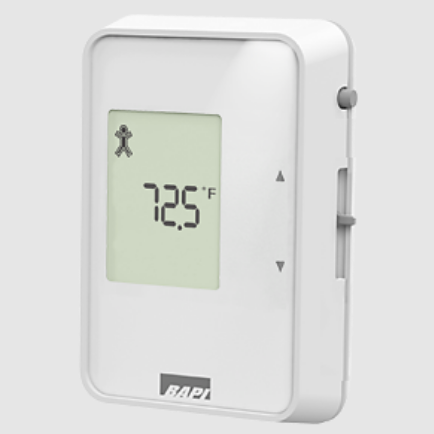

BAPI-STAT QUANTUM

BAPI-STAT QUANTUM ROOM SENSOR | TEMP & HUMIDITY HVAC TRANSMITTER

The BAPI-Stat “Quantum” series offers a high-degree of flexibility with models for temperature only, humidity only, or combined sensing. It features an upgraded high-contrast display for improved visibility from a distance and can be ordered with either pushbutton or slider setpoint adjustments. Designed for longevity and ease of use, it is available in wireless (Bluetooth or 900 MHz) and wired configurations to suit diverse building infrastructures

PRODUCT USES:

Commercial Buildings: Monitoring and controlling office, school, and retail space environments.
Demand Controlled Ventilation: Providing accurate data for energy-efficient airflow management.
Occupancy Control: Using override buttons to signal BAS for temporary environment adjustments.
Specialized Facilities: Clean rooms or healthcare environments (via the “Quantum Prime” variant).

Technical Sheets

Instruction Manual

Catalog Page

Specifications

BAPI-STAT QUANTUM ROOM SENSOR | TEMP & HUMIDITY HVAC TRANSMITTER – KEY SPECIFICATIONS

Temperature Accuracy: ±0.36°F (±0.2°C) from built-in thermistors.
Humidity Accuracy: ±2% RH.
Environmental Range: 32° to 122°F (0° to 50°C) and 0 to 95% non-condensing humidity.
Outputs: 4–20 mA, 0–5 V, or 0–10 V analogue outputs; Digital options include BACnet and Modbus.
Wireless Connectivity: Available in 900 MHz (275 ft range) or Bluetooth Low Energy (BLE).
Power: 12–35 VDC or 15–28 VAC for wired; up to 5-year battery life for wireless models.
Enclosure: ABS Plastic with UL94 V-0 rating.
