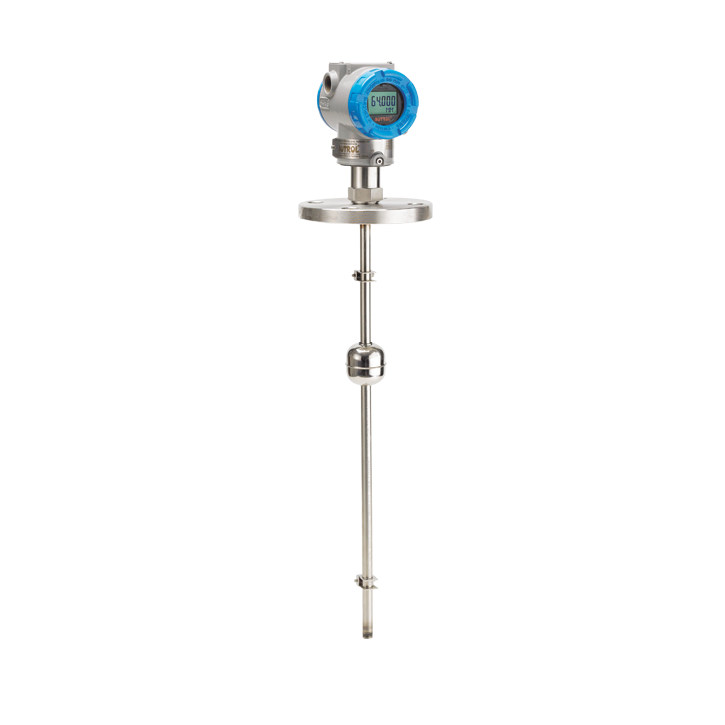

Autrol ALT 6400 Smart Float Level Transmitter

AUTROL ALT 6400 SMART FLOAT LEVEL TRANSMITTER  | HART POINT LEVEL SENSOR

The Autrol ALT 6400 is a microprocessor-based, smart float-type level transmitter designed for steady monitoring and control of liquid levels in industrial tanks.

A high-performance, contact-type float level transmitter that utilizes magnetic buoyancy to provide continuous 4-20mA level measurement and alarm switching.







AUTROL ALT 6400 SMART FLOAT LEVEL TRANSMITTER  | HART POINT LEVEL SENSOR

The ALT 6400 is an “intelligent” smart transmitter that uses a magnetic float to actuate reed switches within a guide pipe. This change in resistance is processed by the internal microprocessor to output a precise 4-20mA analog signal compatible with DCS or PLC systems. It features an integrated LCD for local indication and supports the digital HART protocol for remote configuration and calibration. Its robust design includes explosion-proof housing and built-in self-diagnostic functions for high-reliability operation.

PRODUCT USES:

  • Water & Wastewater: Monitoring clean water tanks, reservoirs, and process basins where surface conditions are stable.
  • Petrochemical & Chemical: Precise level measurement for non-sticky and non-foaming chemicals in storage vessels.
  • Industrial Automation: Serving as a primary sensor for high/low level alarms and automated pump control in various industries like Pulp & Paper or Food & Beverage.
  • Stationary Storage: Ideal for applications requiring high accuracy and remote communication via HART protocol.





Technical Sheets

Instruction Manual

Catalog Page

Specifications

AUTROL ALT 6400 SMART FLOAT LEVEL TRANSMITTER  | HART POINT LEVEL SENSOR – KEY SPECIFICATIONS

  • Technology: Float ball with magnetic reed switch.
  • Measuring Range: 0.1 to 4 meters (approx. 13 feet).
  • Accuracy: ±15 mm (standard resolution ±10 mm).
  • Output Signal: 2-wire 4-20 mA with Digital HART communication.
  • Power Supply: 12.5 to 45 VDC.
  • Process Temperature: -40°C to 80°C (-104°F to 176°F).
  • Process Pressure: Max 20 kg/cm² (approx. 284 psi).
  • Enclosure Rating: IP66, Explosion-proof (Ex d).
  • Configuration: 2 external buttons for Zero/Span field adjustment.
  • Conditions: Best for “No Foam, No Sticky, No Sludge, No Vacuum” applications.
