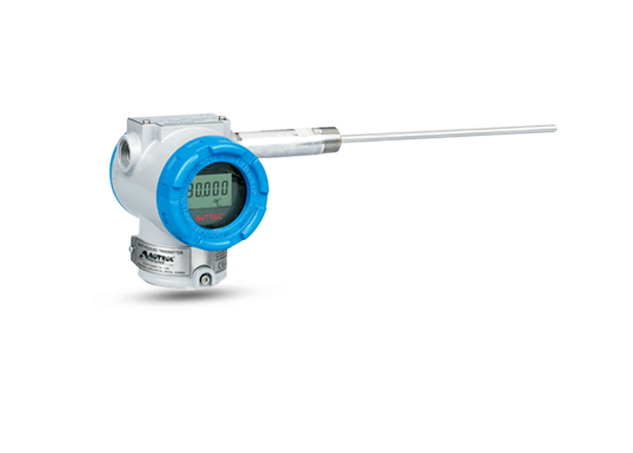

AUTROL ATT 2100 SMART TEMPERATURE TRANSMITTER
The ATT 2100 converts various physical temperature values (RTD, Thermocouple, etc.) into a proportional analog current output while also superimposing a digital signal using the HART 7 protocol for remote configuration and diagnostics. Key features include automatic ambient temperature compensation, continuous self-diagnostics, and an optional 3-line LCD display. It is built with a flameproof, IP66/67-rated housing, ensuring reliability and safety in oil & gas, chemical plants, and marine applications. The dual-sensor “Fast Back-up” function ensures uninterrupted operation in critical systems by automatically switching lines if a problem occurs.
Specifications
AUTROL ATT 2100 SMART TEMPERATURE TRANSMITTER – KEY SPECIFICATIONS
- Input Types: Flexible input for RTD (2, 3, or 4-wire Pt100 DIN/JIS/US curves), Thermocouples (Types B, E, J, K, N, R, S, T), mV, and resistance (Ohms).
- Output Signal: 4-20 mA DC (2-wire loop powered) with superimposed HART 5 or 7 digital communication.
- Accuracy: Excellent digital accuracy (e.g., RTD ±0.17 °C; T/C Type J ±0.25 °C).
- Stability: Long-term stability of ±0.12% of reading or ±0.15 °C over two years for RTDs.
- Certifications: FM, ATEX, TR CU (EAC), CE, KCs approved for hazardous locations (Flameproof and Dust Ignition-proof).
- Enclosure Rating: IP66/67 weatherproof and flameproof low-copper aluminum housing.
- Power Supply: 12 to 45 VDC (24 VDC typical).
